Siemens SINUMERIK 828D Service Manual

Service cases - hardware
4.8 SINAMICS S120 Combi
Hardware and Software
132 Service Manual, 03/2011, 6FC5397-5DP40-0BA0

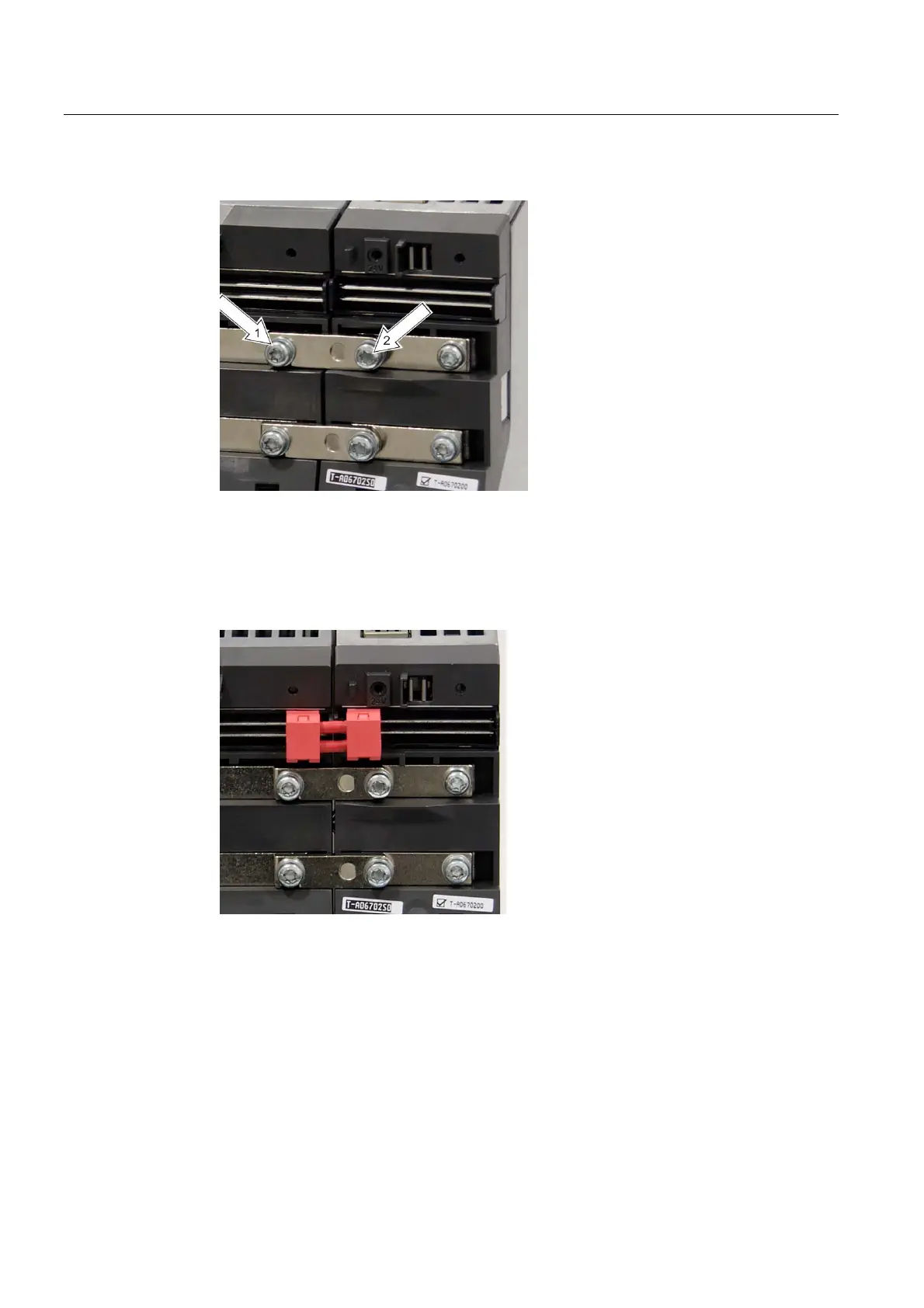

5. Install the upper DC link busbar:
– Release the screws
– Turn over the DC link bridge.
– Observe the sequence when tightening the screws
6. Install the red 24 V connectors in accordance with the supplied description of the
component to be connected.
7. Close the protective covers of both components.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
