Service cases - hardware
4.9 Motor Module Booksize Compact format
Hardware and Software
Service Manual, 03/2011, 6FC5397-5DP40-0BA0
149

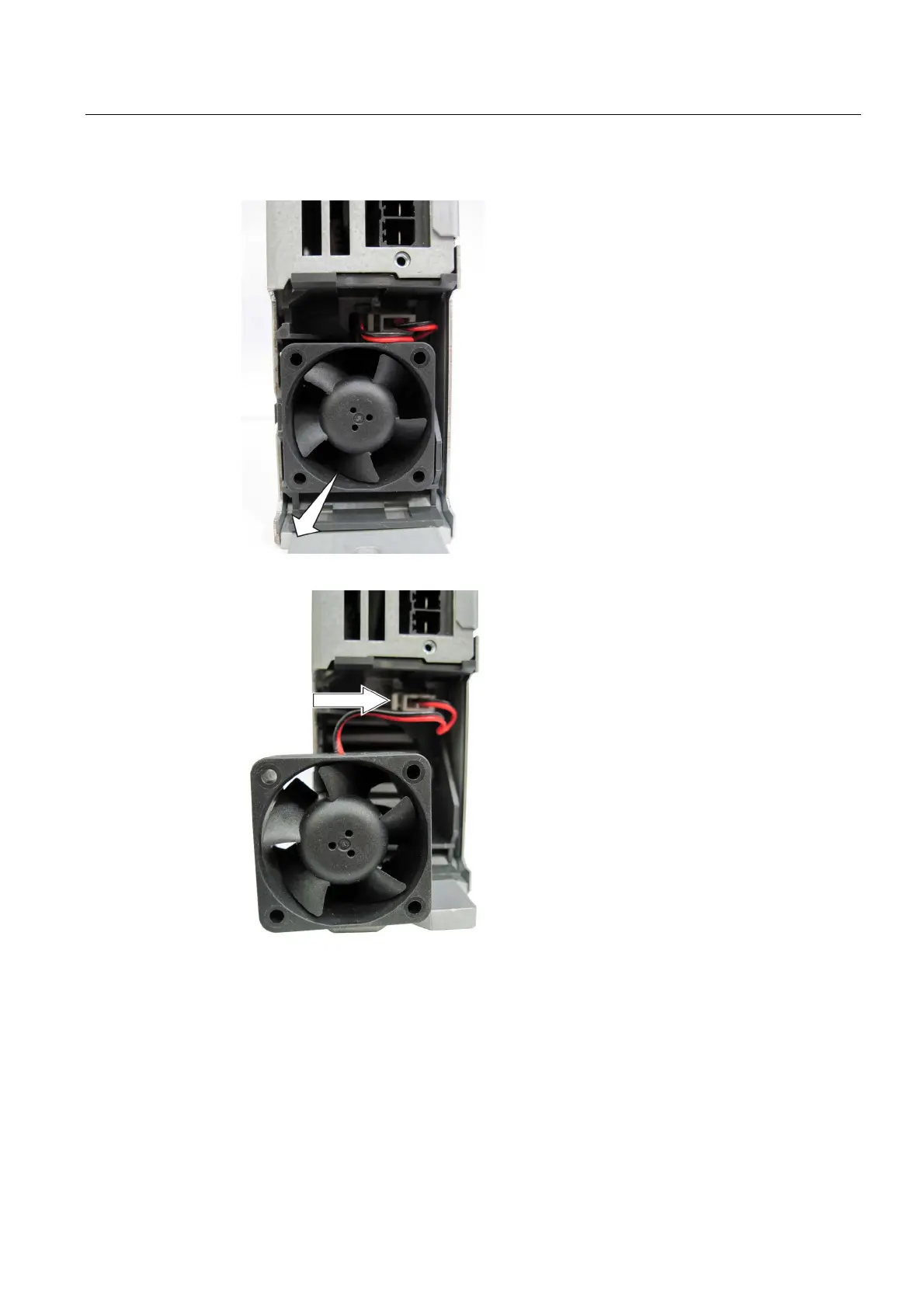

2. Remove the fan cover at the lower side of the Motor Module by releasing the snap hooks.
3. Carefully withdraw the fan.
4. Release the connector before you withdraw it.
