Service cases - hardware
4.9 Motor Module Booksize Compact format
Hardware and Software
150 Service Manual, 03/2011, 6FC5397-5DP40-0BA0
Installing the fan
Procedure:

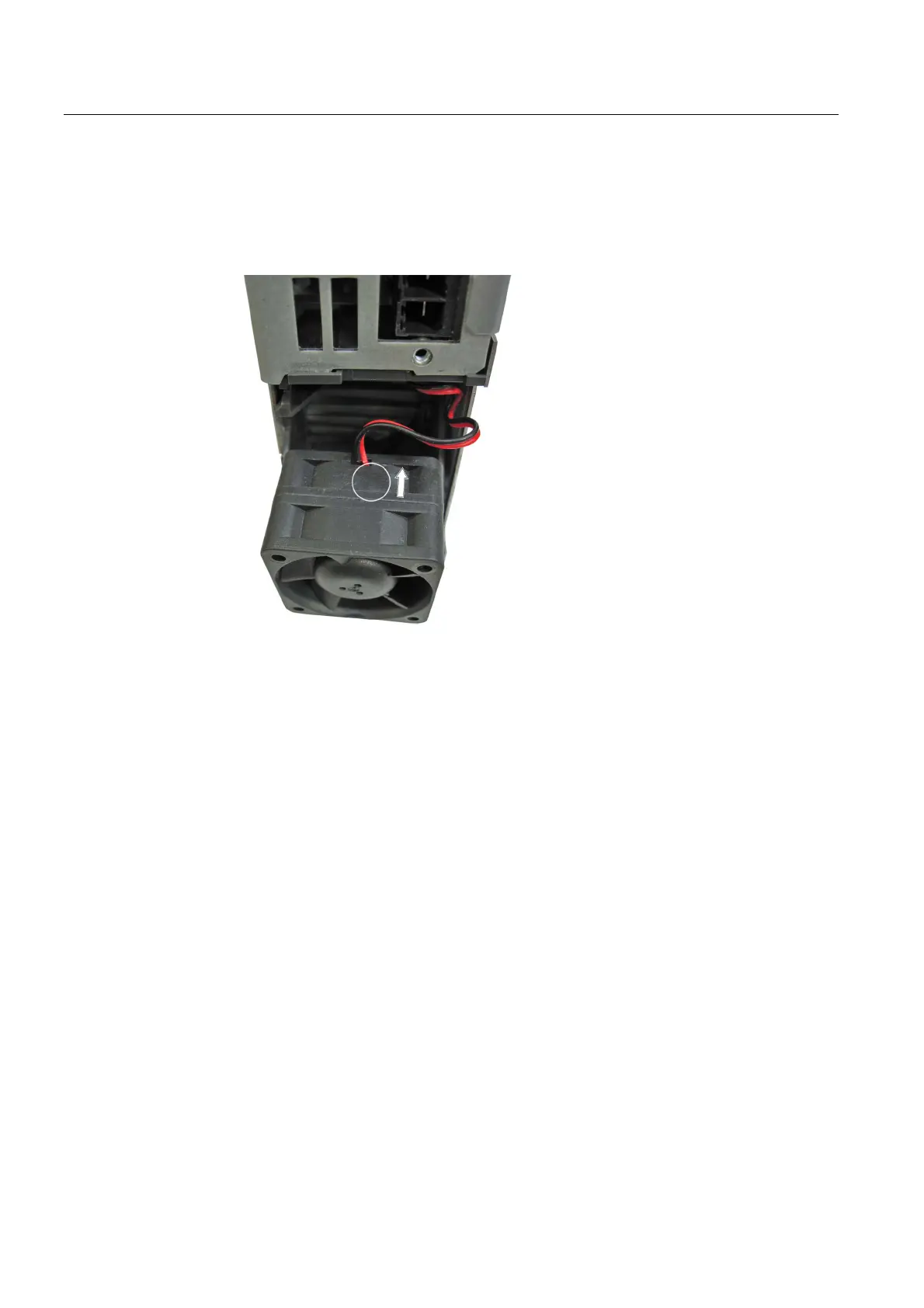

1. Before installing the fan, observe the direction of the airflow: The arrow on the fan must
point toward the cooling ribs.
2. Insert the cable connector until it latches into place.
3. Install the fan.
Notice! Do not crush the connection cables!
4. Attach the fan cover.
