Service cases - hardware
4.11 Double Motor Modules
Hardware and Software
Service Manual, 03/2011, 6FC5397-5DP40-0BA0
163

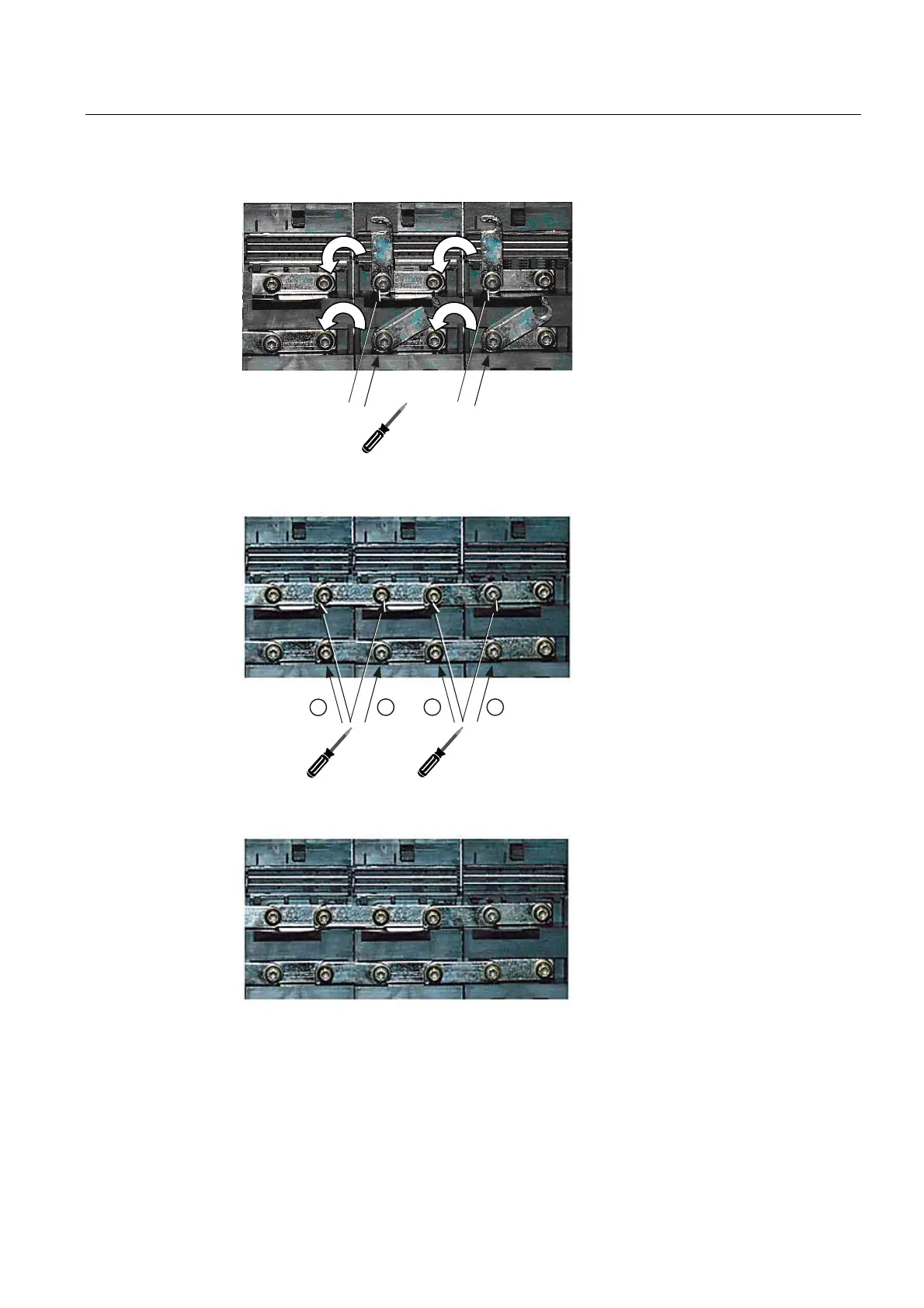

4. Release the Torx screws and connect the DC link busbar.
7RU[7
5. Tighten the Torx screws of the DC link busbars, observe the correct sequence.
7RU[7
7RU[7
6. Place the red jumper plug on the electronics busbar until it clicks into place.
7. Place the 24 V terminal adapter on the electronics power supply busbar until it clicks into
place.
8. Close the protective cover of the DC link voltage.
