Siemens SINUMERIK 828D Service Manual

Service cases - software
3.3 Software backup
Hardware and Software
Service Manual, 03/2011, 6FC5397-5DP40-0BA0
37

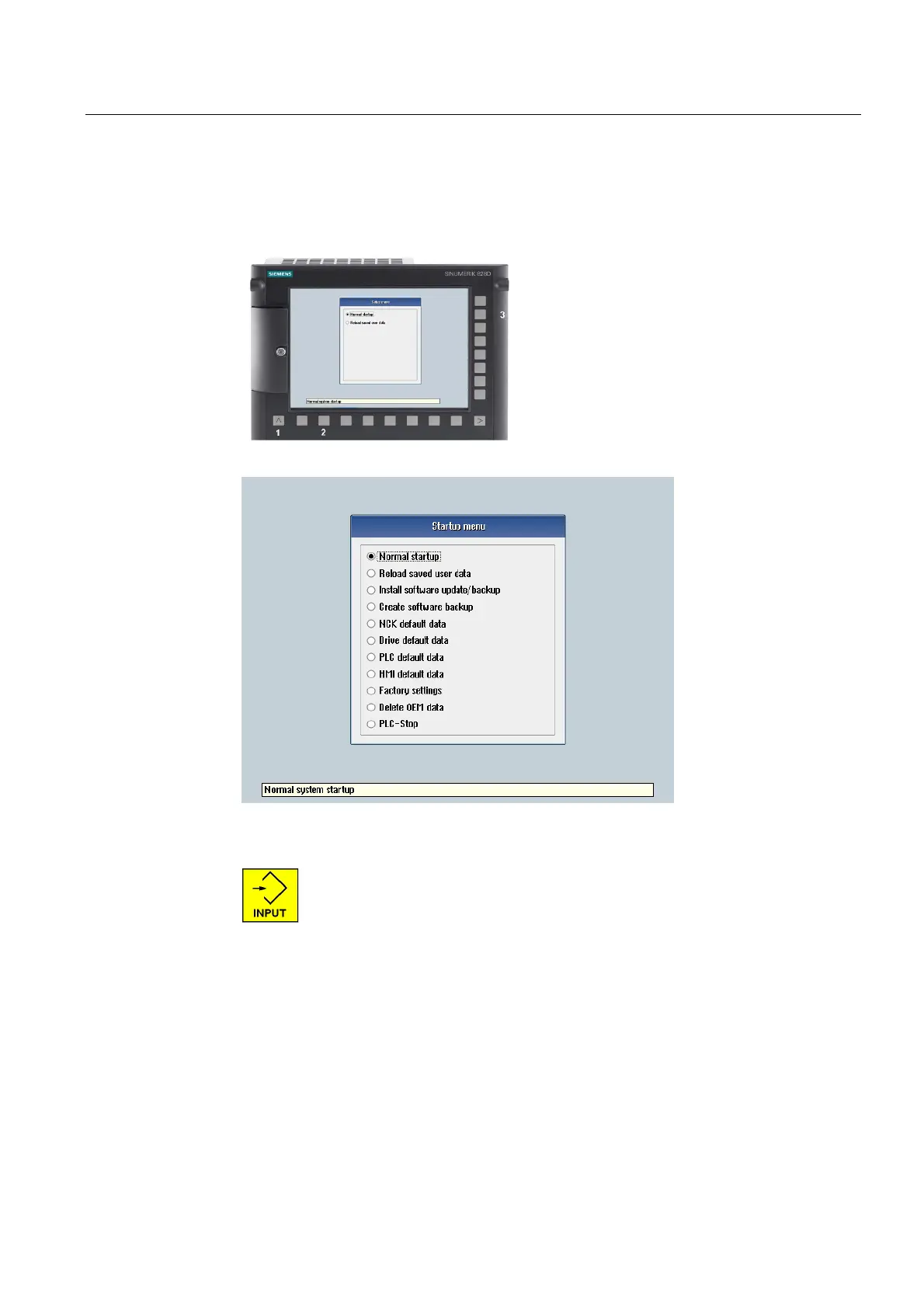

5. Press the <SELECT> key, "Normal startup" is the default setting.
6. Now press the following keys in succession:
Menu reset key, HSK2 (horizontal SK2), VSK2 (vertical SK2)
7. The Startup menu is displayed:
8. Using the cursor keys, select the menu item "Create software backup".
9. Press the <INPUT> key to confirm your selection:
10. Insert a storage medium into the slot on the front panel.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
