Siemens SINUMERIK 828D Service Manual

Service cases - software
3.3 Software backup
Hardware and Software
38 Service Manual, 03/2011, 6FC5397-5DP40-0BA0

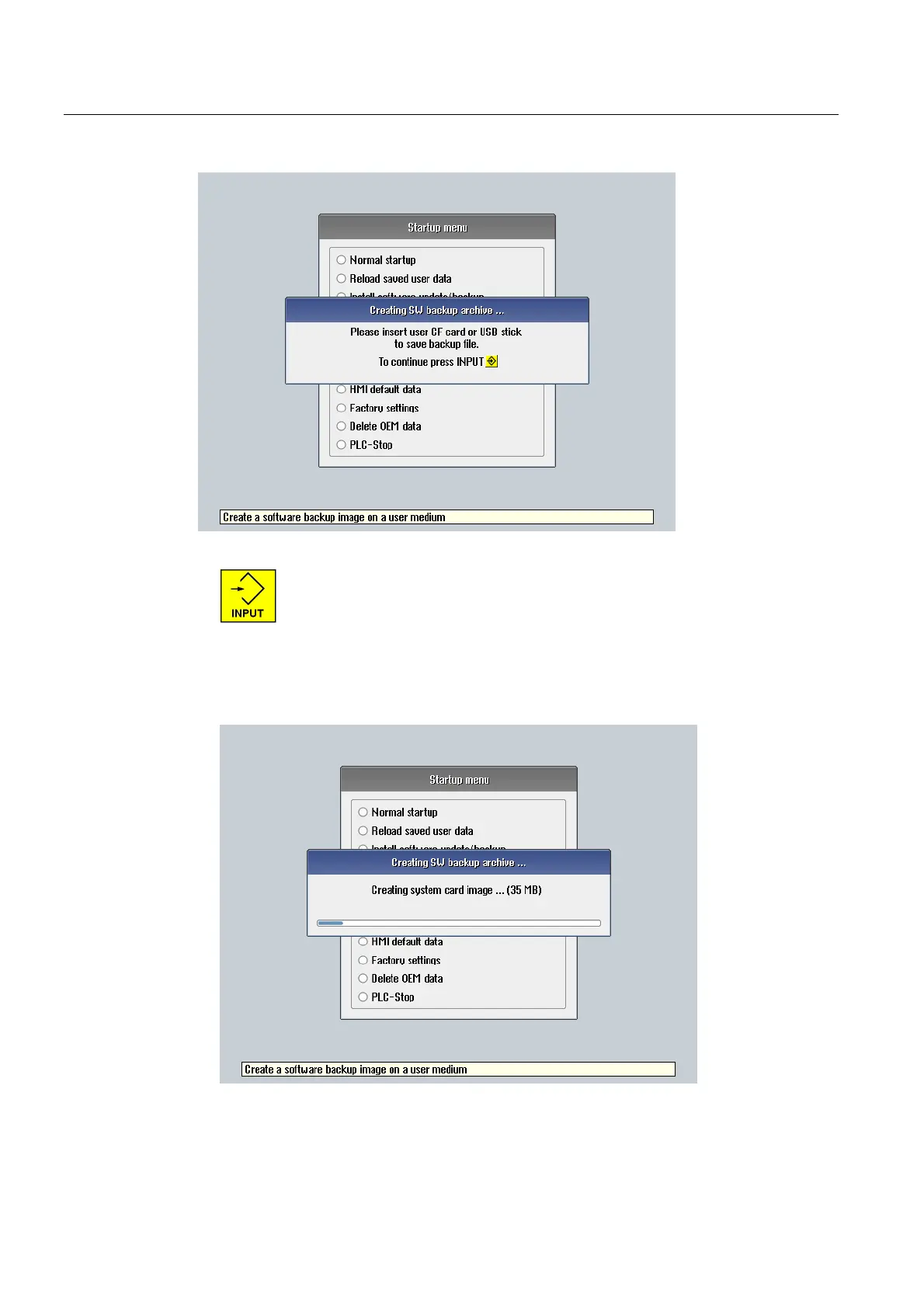

11. Press the <INPUT> key to start the backup.
The software first checks whether a backup was already generated on the card and
outputs a message. The backup can now be overwritten or the process interrupted by
making the appropriate operator action.
12. When starting to generate a backup, the following message is output:

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
