Siemens SINUMERIK 828D Service Manual

Service cases - software
3.7 Enter the final end user data (EUNA)
Hardware and Software
Service Manual, 03/2011, 6FC5397-5DP40-0BA0
71

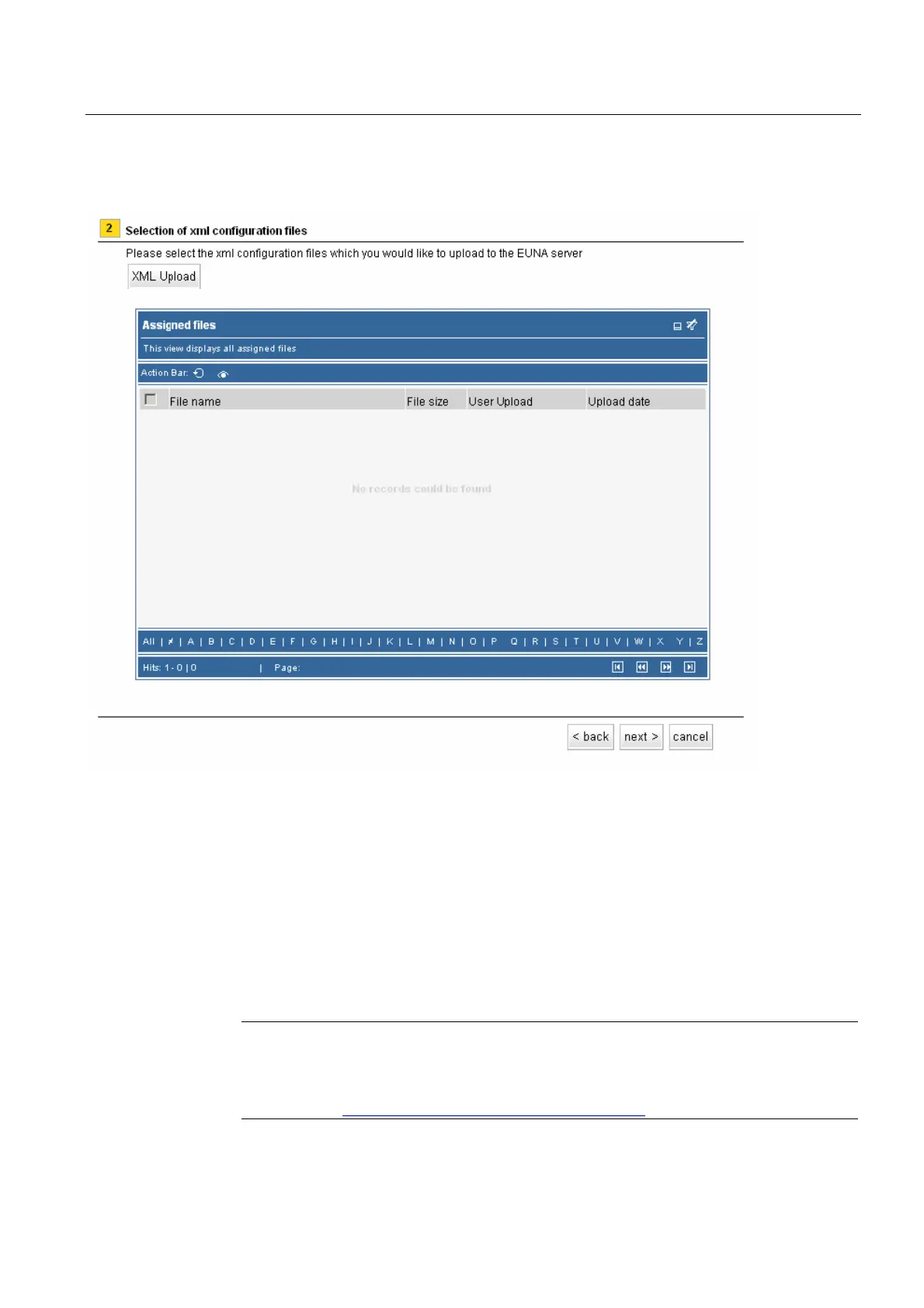

4. In the following dialog box, select the configuration files:
5. To open a navigation window, press the "XML Upload" softkey.
6. Select the files of the machine identity that you wish to transfer to EUNA.
7. Now confirm using the softkey "Upload file ...".
8. After the upload, other files can also be uploaded.
During the upload, the files are checked and a log is displayed for each file that has been
transferred.
9. If no other files are to be uploaded, press the softkey "continue >".
10. Complete the upload by pressing the "Save" softkey.
Note
Contact persons worldwide
If it was not possible to transfer the file, then please contact your local Siemens
officeContact (http://www.automation.siemens.com/partner
) in sales.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
