Service cases - hardware
4.2 Replacing the system CompactFlash Card
Hardware and Software
82 Service Manual, 03/2011, 6FC5397-5DP40-0BA0

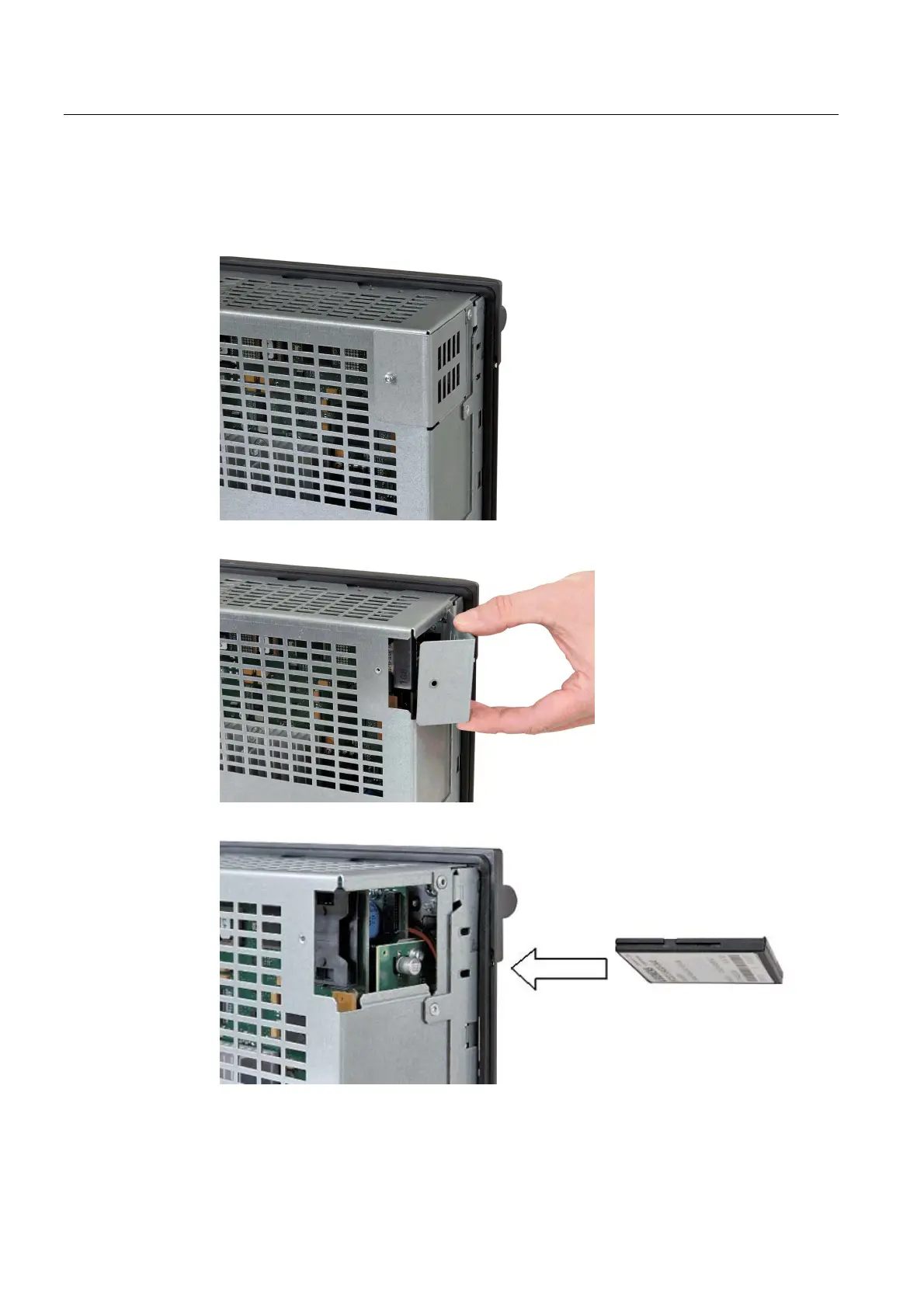

Inserting the system CompactFlash Card
Procedure:
1. Release the screw (M3).
2. Move the metal cover to the side and withdraw it.
3. Gently insert the system CompactFlash Card into the slot until it clicks into place.
