Service cases - hardware
4.3 SINAUT modem
Hardware and Software
90 Service Manual, 03/2011, 6FC5397-5DP40-0BA0

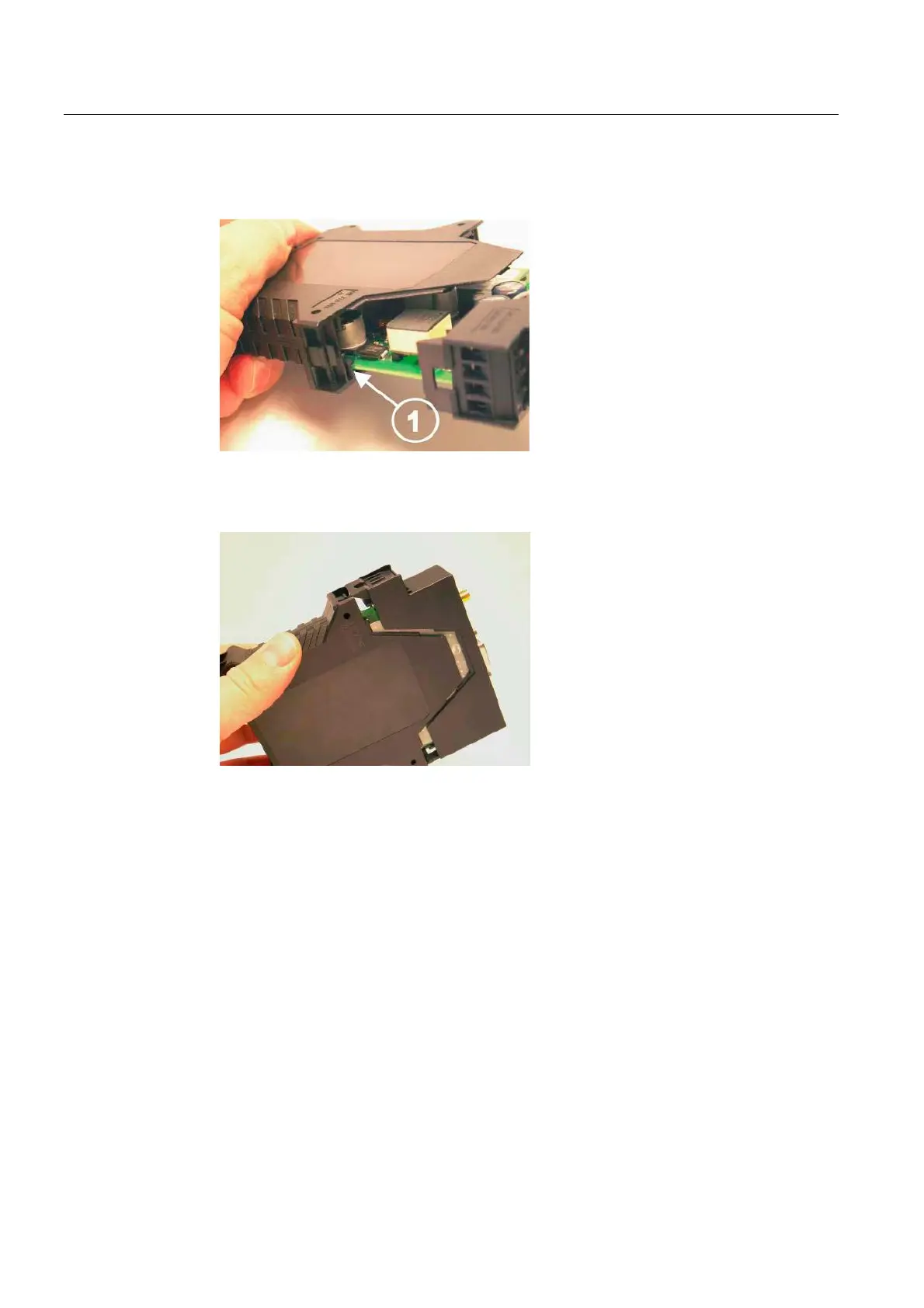

8. Then assemble the two housing sections again. To do this, locate the printed circuit
board in the upper and lower rails inside the rear section of the housing.
① Rail for the printed circuit board
9. Press the two housing sections together so that the lugs of the fasteners click into place
at the top and bottom.
Result
SIM card is ready; screw the SINAUT modem together again.
