Siemens SINUMERIK 840D sl Operation/Programming

4
08/2005 Creating a ShopTurn Program
4
♥ Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 4-141
The machine manufacturer only sets one speed limit for the machine,
i.e. none that are dependent on the workpiece.
Please also refer to the machine manufacturer's instructions.
 Press the "Program" softkey.
 Select the directory in which you want to create a new program.
New
ShopTurn
program
 Press the "New" and "ShopTurn program" softkeys.
 Enter a program name.
Program names may be a maximum of 24 characters in length.
You can use any letters, digits or the underscore symbol (_).
ShopTurn automatically replaces lowercase letters with uppercase
letters.
-or-
 Press the "OK" softkey or the "Input" key.

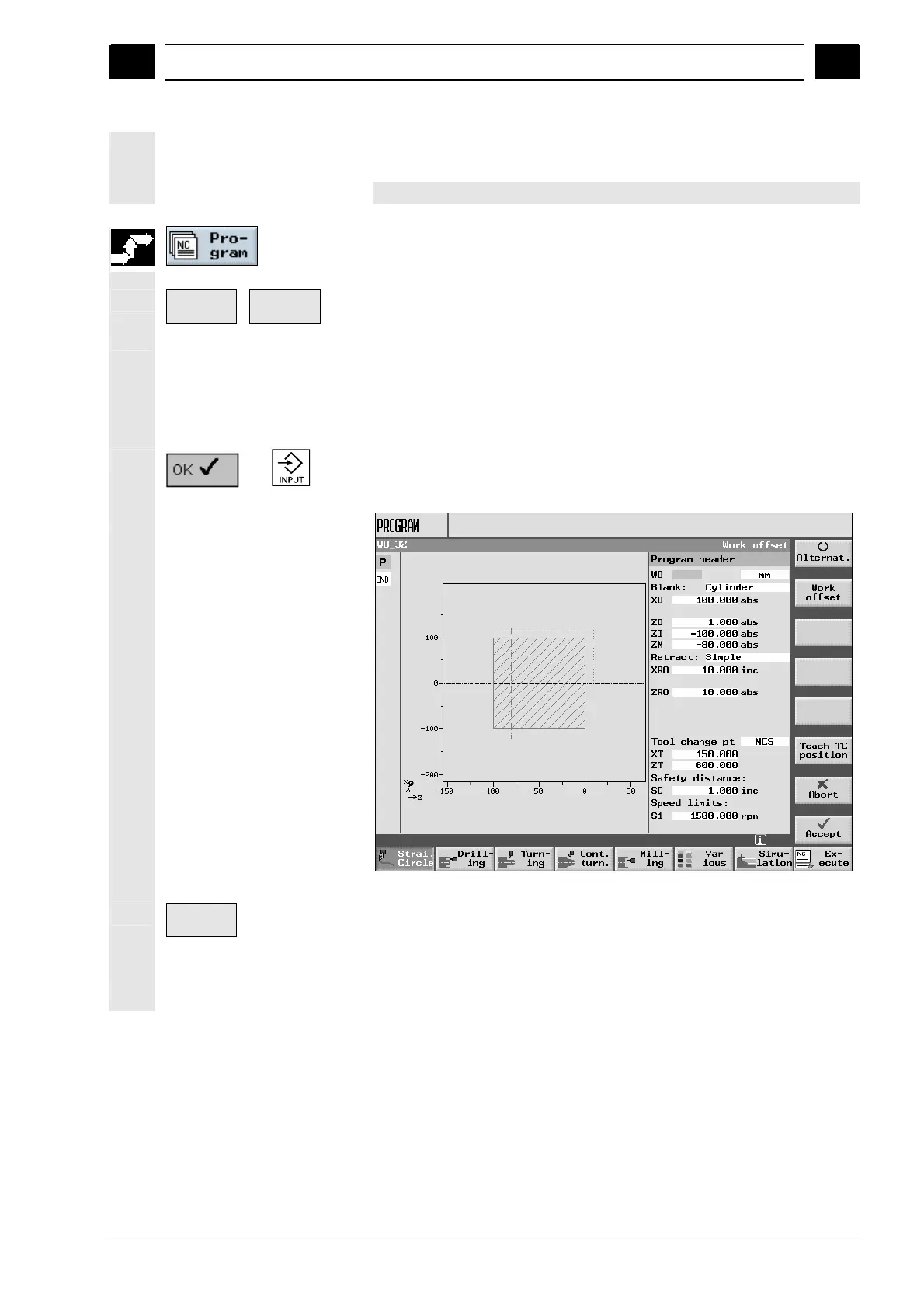

The parameter screen form “Program Header” is displayed.
Set program header parameters
Work
offset
 Select a zero-point offset or input a zero-point offset directly into
the input field or call up the zero-point offset list using the "Work
offset" softkey if you want to select a zero-point offset there.
 Input the other parameters.

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
