Siemens SINUMERIK 840D sl Operation/Programming

1
Introduction 08/2005
1.3 O
p
erator interface
1
♥ Siemens AG, 2005. All rights reserved
1-38 SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition
Use the "Cursor right" key to open a program block in the process
plan. The appropriate parameterization mask complete with
programming graphics is then displayed.

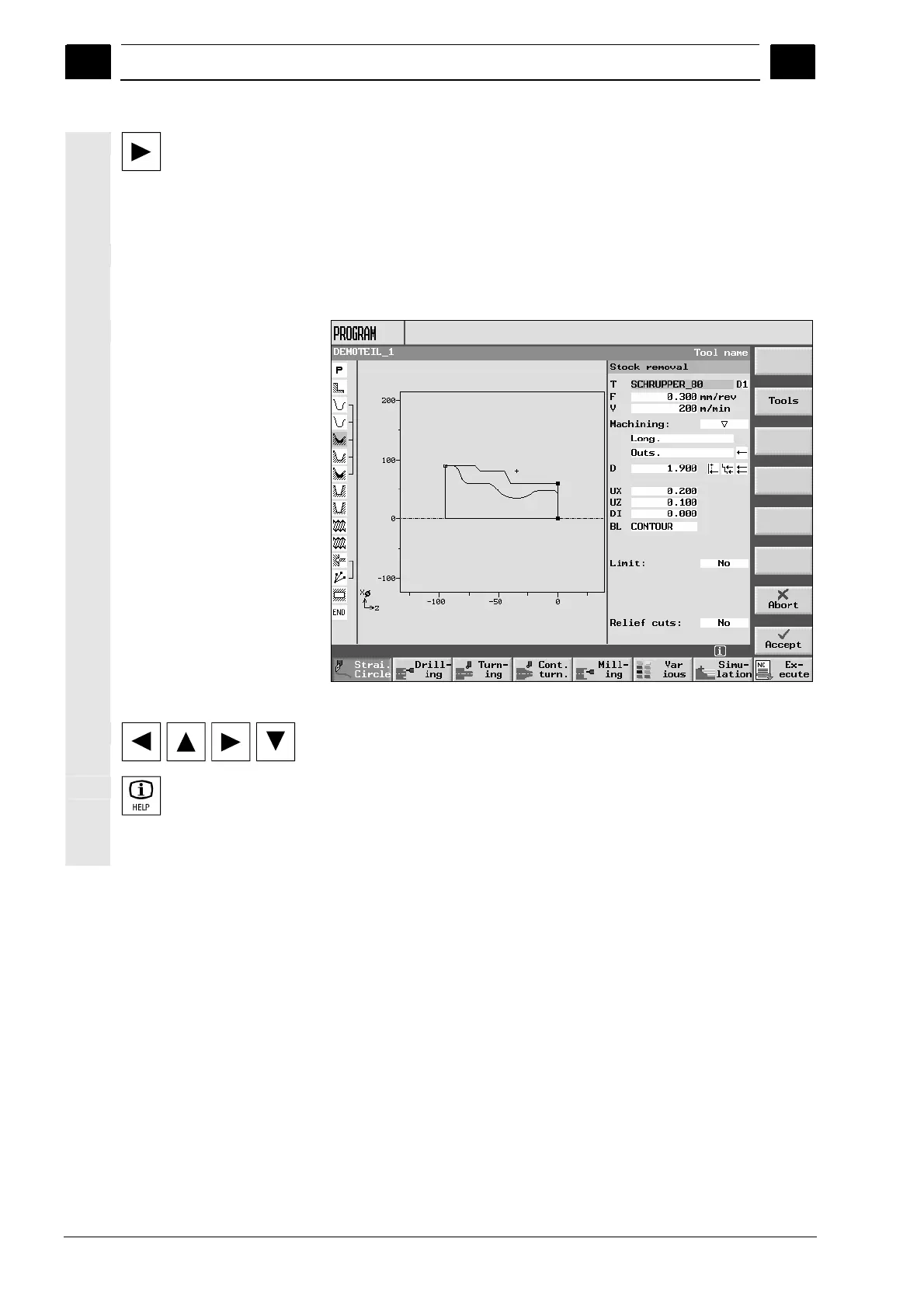

Parameter screen with
programming graphics
The programming graphics in a parameterization screen form show
the contour of the current machining step in broken-line graphics
complete with the parameters.
Parameter screen with programming graphics
Use the cursor keys to move between the input fields within a
parameterization screen form.
Use the "Help" key to switch between the programming graphics and
the help display.

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
