Examples 08/2005
11.1 Standard machinin
g
p
rocesses
11
♥ Siemens AG, 2005. All rights reserved
11-418 SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition
DZ
3
UXY
0.1 mm
UZ
0.1
Insertion
Center
FZ
50 mm/min
Press the
softkey
Result

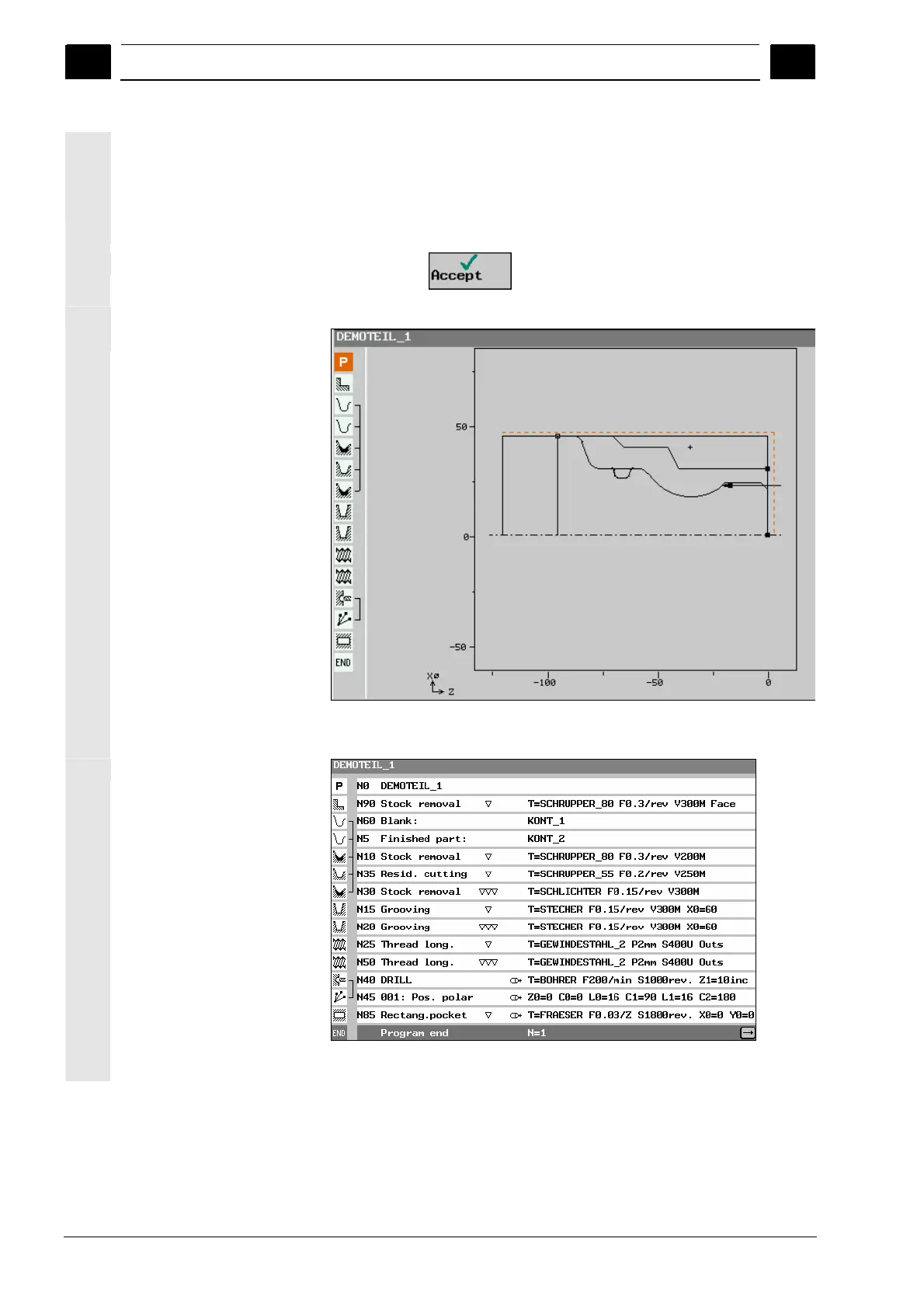

Programming graphics
Process plan
