7. Ream inside contour
 Press the
Contour
milling
Remove
softkeys
 Enter parameters:
T
Milling tool_5
F
0.200 mm/tooth
V
250 m/min
Position
Front
Machining
Z0
0 abs
Z1
3 inc.
DXY
100 %
DZ
2
UXY
0 mm
UZ
0
Starting point
Auto
Insertion
Center
FZ
0.100 mm/tooth
Retraction mode
To retraction plane
 Press the
softkey

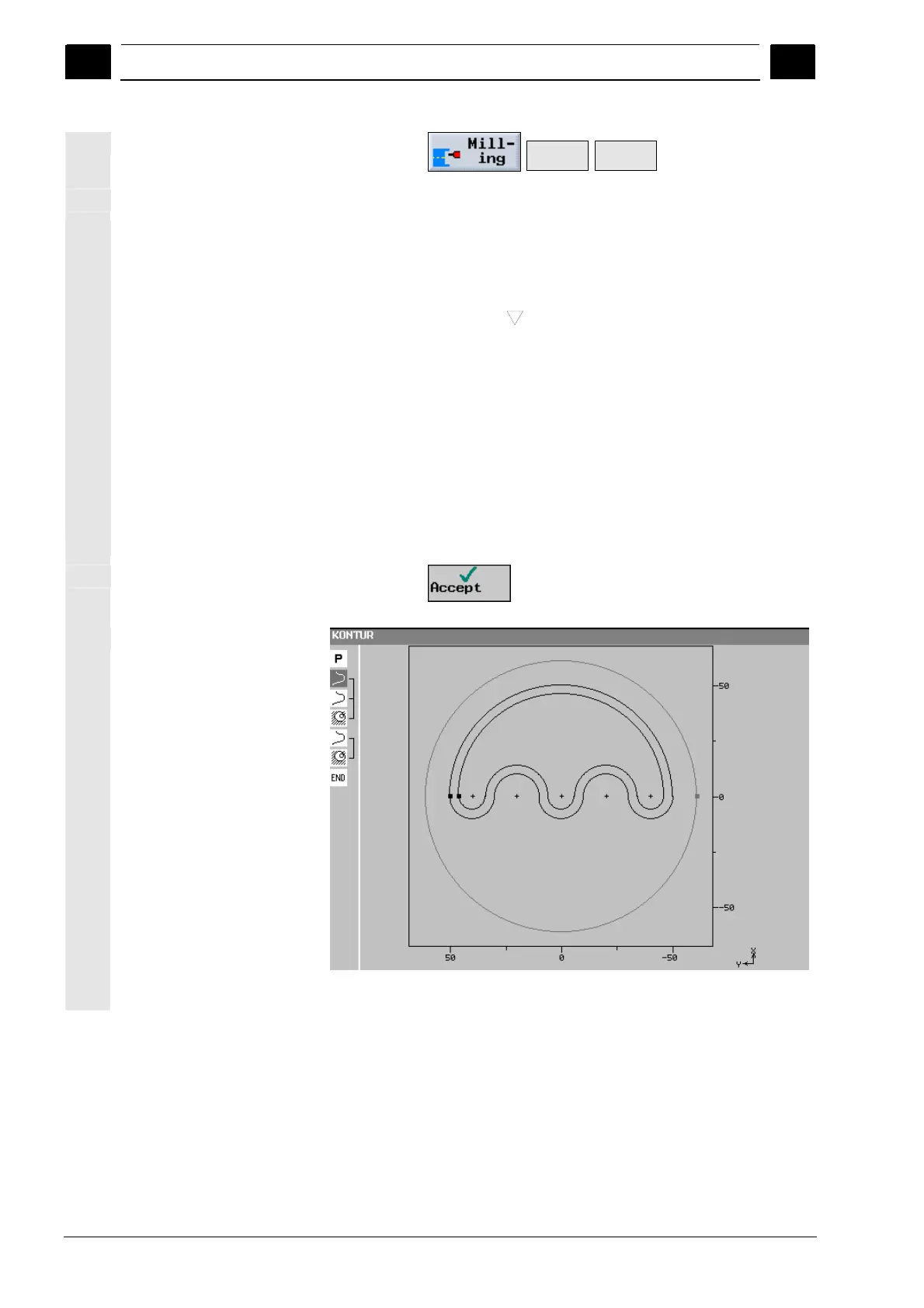

Result
Programming graphics
