06.03
9.1 SIMODRIVE 611 universal/E, POSMO CD/CA and SI
9-265
Siemens AG, 2003. All rights reserved
SINUMERIK 840Di Manual (HBI) – 06.03 Edition
9.1.2 Preconditions for an online connection
In order to be able to establish an online connection between SimoCom U and
the SIMODRIVE 611 universal drives connected using PROFIBUS DP, the fol-
lowing preconditions must be fulfilled:
S SimoCom U must be installed
– For installing SimoCom U, see Section 9.2, page 9-271
S A PROFIBUS connection must exist from the PROFIBUS interface of the
MCI board to all drives
– For network rules, see Section 7.2, page 7-210
S With all drives, the PROFIBUS address must be set
– For SIMODRIVE 611 universal/E see Subsection 9.1.3, page 9-265
– For SIMODRIVE POSMO CD/CA and SI see Subsection 9.1.4, page
9-267
S The SINUMERIK 840Di PLC must be networked using MPI
– For networking the PLC, see Subsection 7.3.2, page 7-212
S The configuration must be loaded into the PLC
– For creating an S7 project, see Section 7.3, page 7-211
– For loading the PLC, see Subsection 7.3.8, page 7-238
S The MPI interface must be set on the “SINUMERIK MCI Card (MPI)”
– For setting the MPI interface, see Subsection 9.1.5, page 9-268
S The routing information must be set
– For setting the routing Information, see Subsection 9.1.6, page 9-269.
9.1.3 Setting a PROFIBUS address (SIMODRIVE 611 universal/E)
For SimoCom U to be able to enter online operation with the SIMODRIVE drives
connected to the PROFIBUS, the PROFIBUS address specified in the S7 proj-
ect (see Section 7.3, page 7-211f) must be set on DP slave 611U or UE in ques-
tion using the display and operator unit.
+P– Control unit
Display

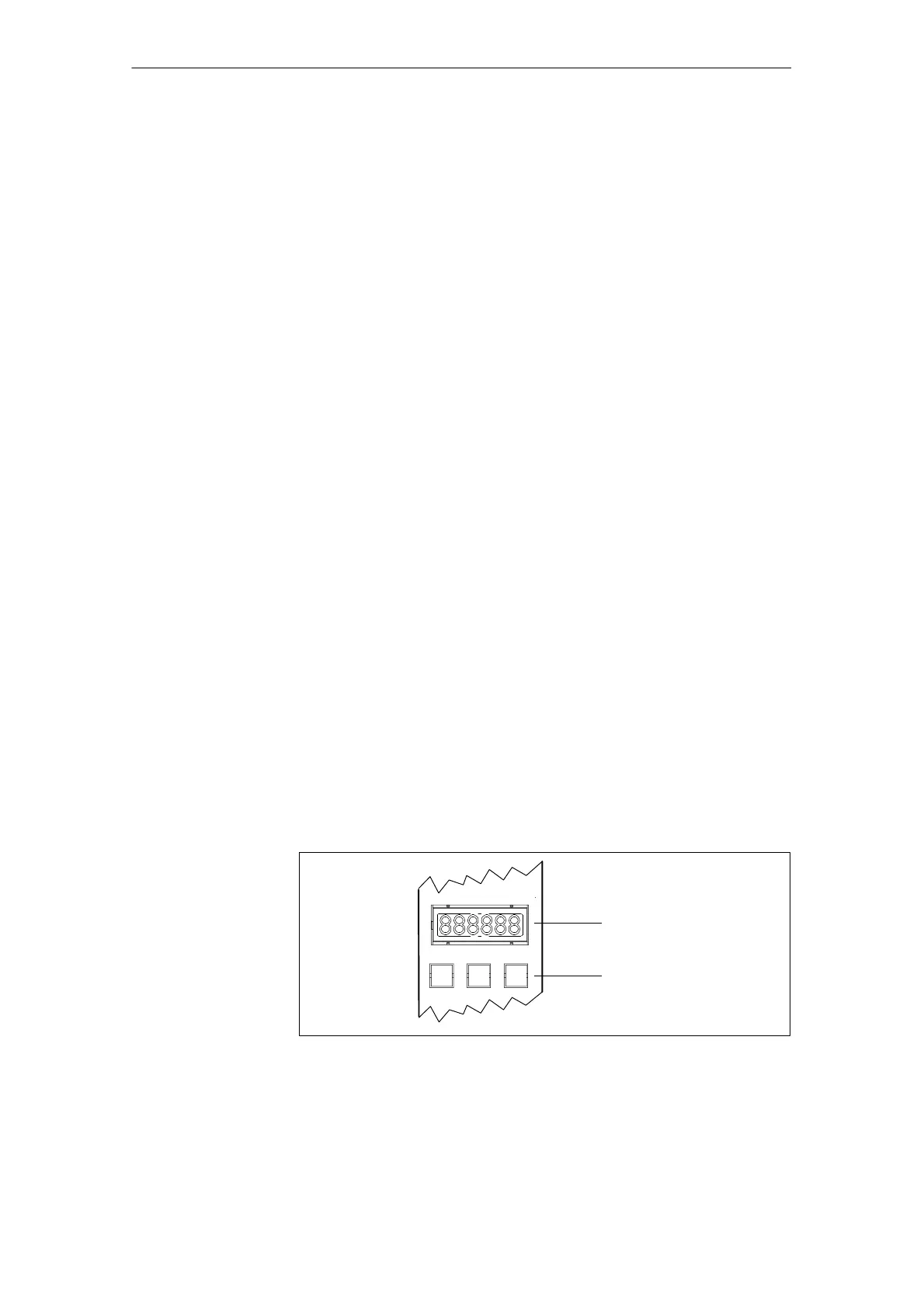

Fig. 9-1 Display and control unit
9 Drive Start-U
