① Connection for internal bus communication (CAN)
② Power supply connection
③ Connection for optional module 2.x (OM2.x)
④ Connection for terminal block heating
⑤ Connection for sample chamber heating

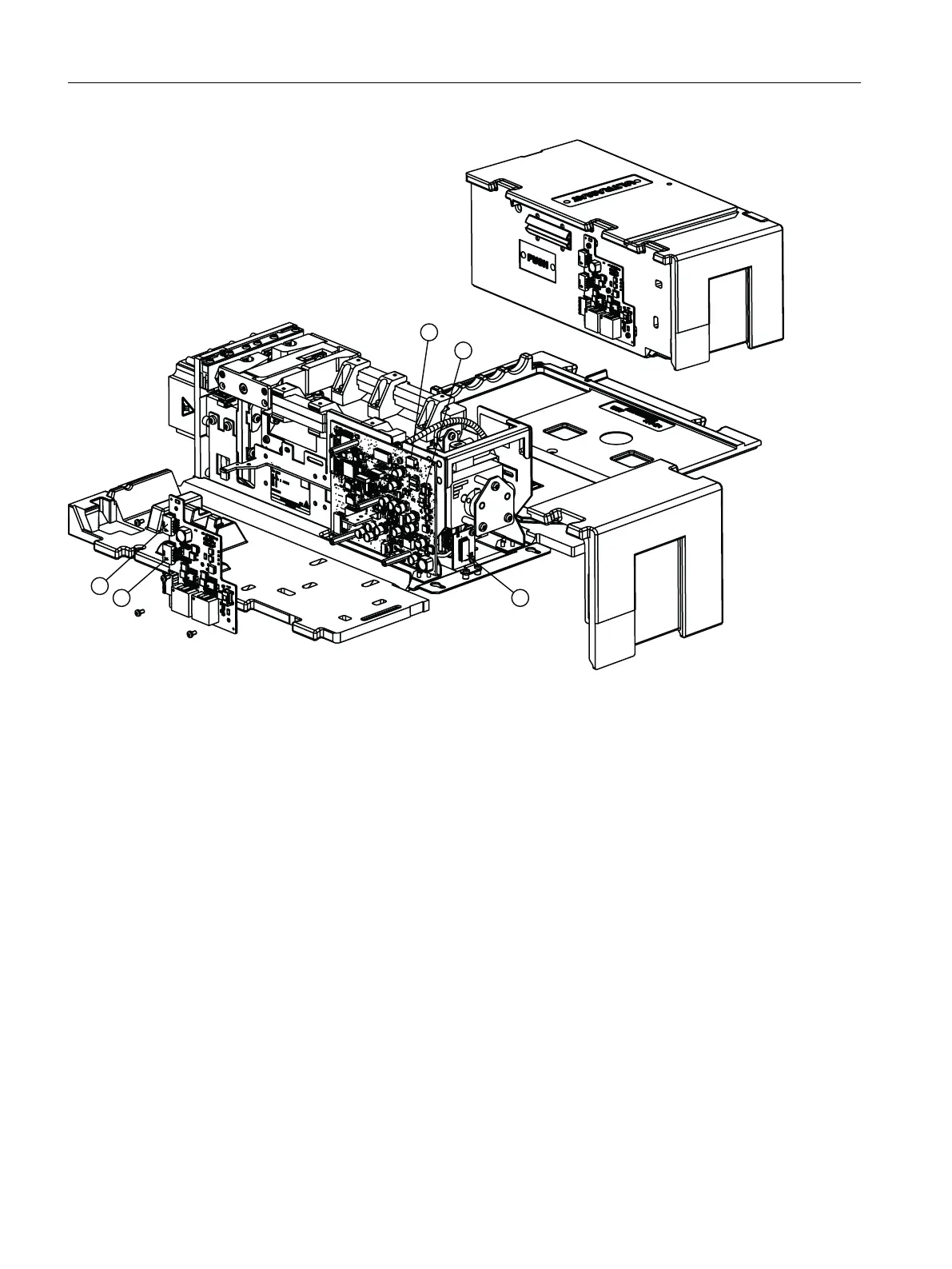

Figure4-10 Structure of ULTRAMAT 7 high-temperature, electrical connections
Description
4.5ULTRAMAT 7
Wall-mounted device
