Siemens SIPROCESS GA700 Operating Instructions

8.1.4 Gas connections at the device
8.1.4.1 OXYMAT 7

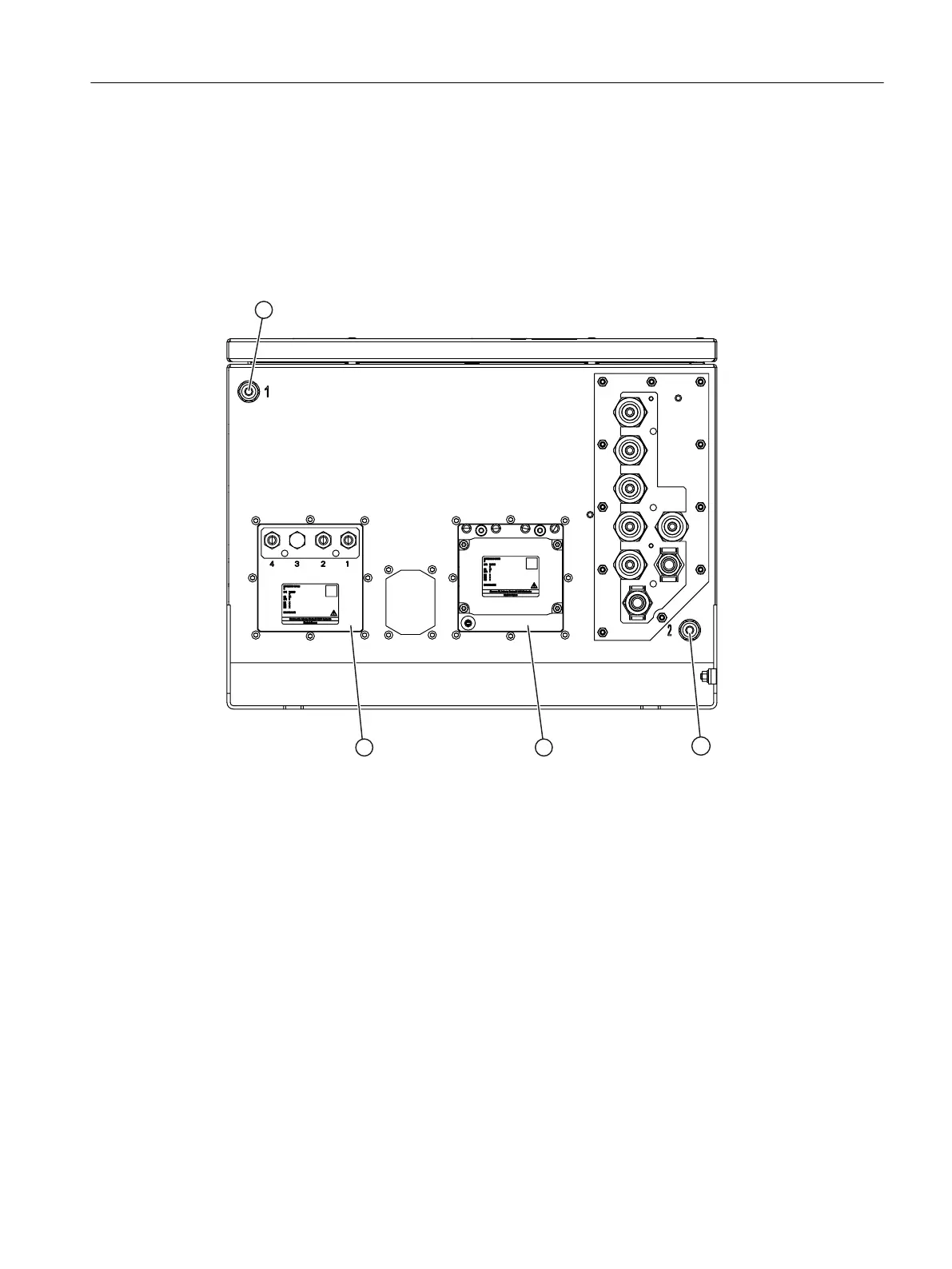

OXYMAT 7: Arrangement of the gas connections in the wall-mounted device





3
① Purging gas inlet
② Purging gas outlet
③ Slot of analyzer module 2: Example ULTRAMAT 7
④ Slot of analyzer module 1: OXYMAT 7
 1 Sample gas inlet
 2 Sample gas outlet
 3 Not assigned, bypass outlet for version with external reference gas pump
 4 Reference gas inlet
Figure8-1 OXYMAT 7 gas connections in the wall mounted device, lower side
Connecting the device
8.1Gas connections
Wall-mounted device
Operating Instructions, 07/2023, A5E31930403-AB 95
