Siemens SIPROCESS GA700 Operating Instructions

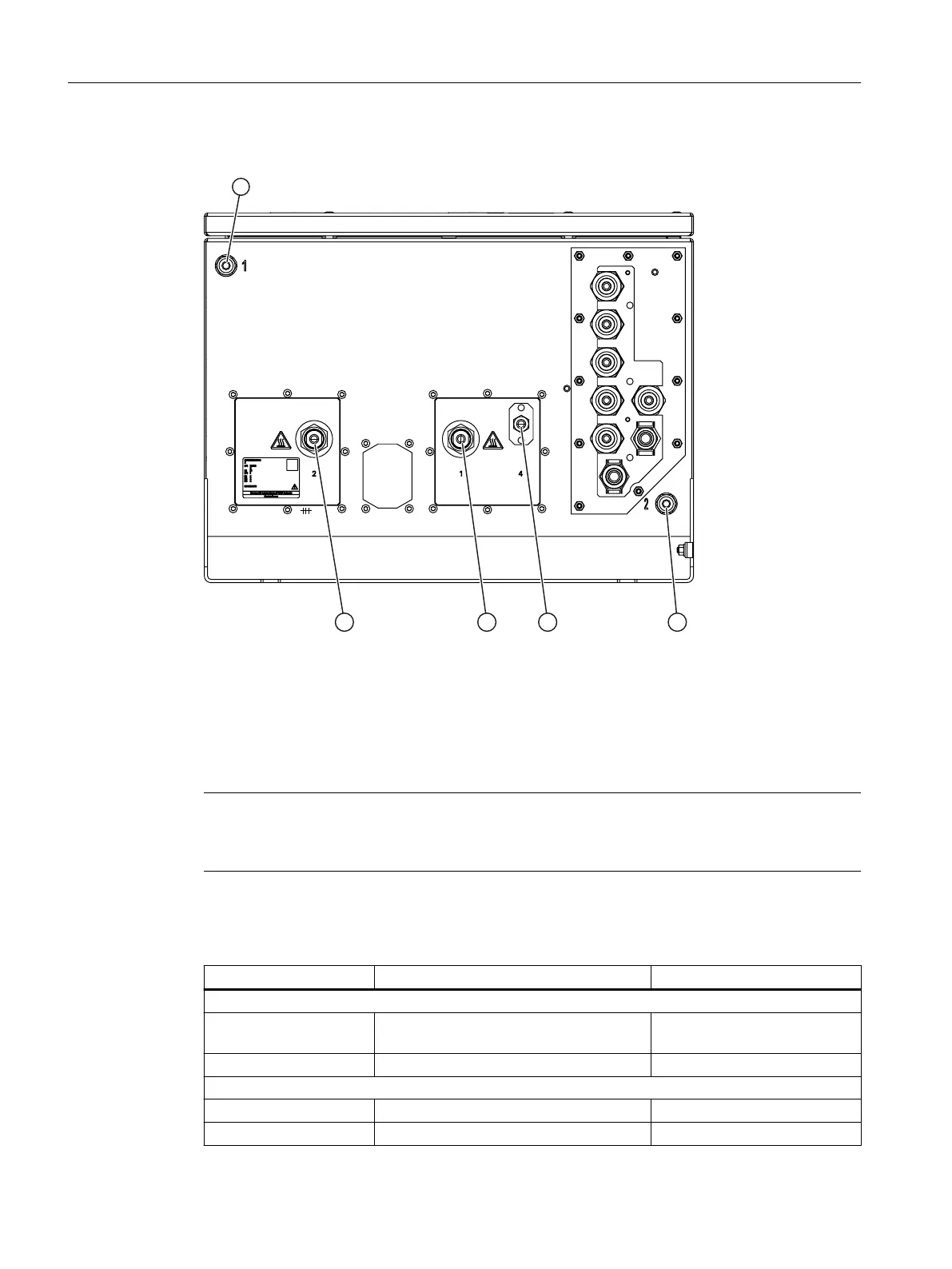

OXYMAT 7 high-temperature: Arrangement of the gas connections in the wall-mounted device


① Purging gas inlet
② Purging gas outlet
③ Reference gas inlet
④ Sample gas inlet
⑤ Sample gas outlet
Figure8-2 OXYMAT 7 gas connections high-temperature in the wall mounted device, lower side
Note
Heated sample gas lines for analyzer modules, high-temperature version
The sample and reference gas must be fed to the analyzer module via heated external lines.
Design of the gas connections in OXYMAT 7
Gas connection Material External nozzle diameter
Version with pipes
Sample gas Stainless steel material no. 1.4571
or Hastelloy material no.2.4819
6mm
Reference gas Stainless steel material no.1.4404 6mm
Version with hoses
Sample gas Stainless steel material no. 1.4571 6mm
Reference gas Stainless steel material no.1.4404 6mm
Connecting the device
8.1Gas connections
Wall-mounted device
96 Operating Instructions, 07/2023, A5E31930403-AB
