7.9 Removing OXYMAT 7, high-temperature version
Overview







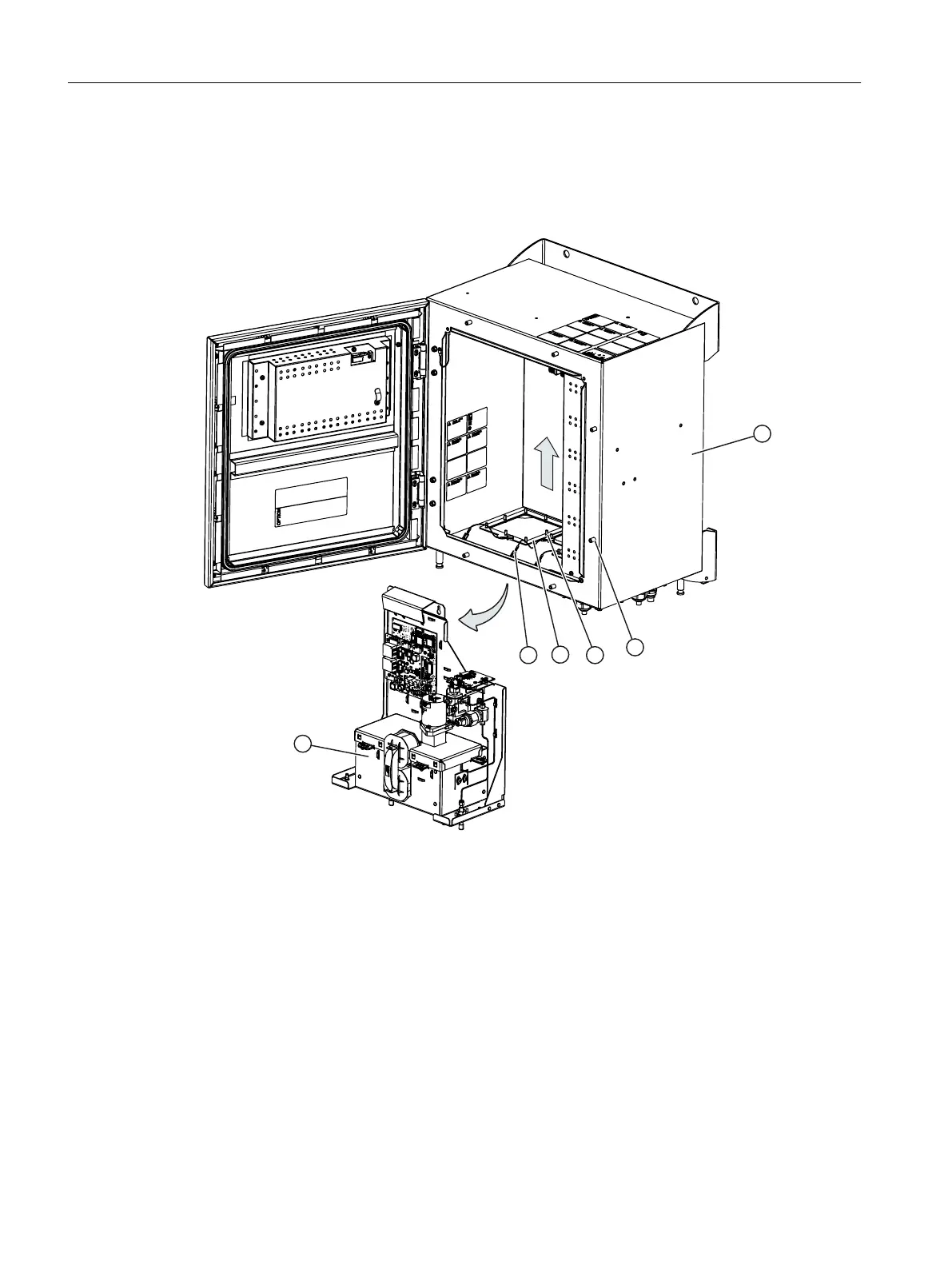

① Wall-mounted device ④ Flat seal
② Screw for door (6 units) ⑤ Equipotential bonding cable
③ Screw for housing 󹪞oor (8 units) ⑥ Analyzer module OXYMAT 7, high-temperature ver‐
sion
Figure7-10 Removing OXYMAT 7 high-temperature
Procedure
1. Isolate the wall-mounted device from power.
2. Loosen the clamping ring connections at the gas inlets and outlets.
3. Loosen the six screws ② and open the door of the wall housing.
Installing / removing and connecting analyzer and option modules
