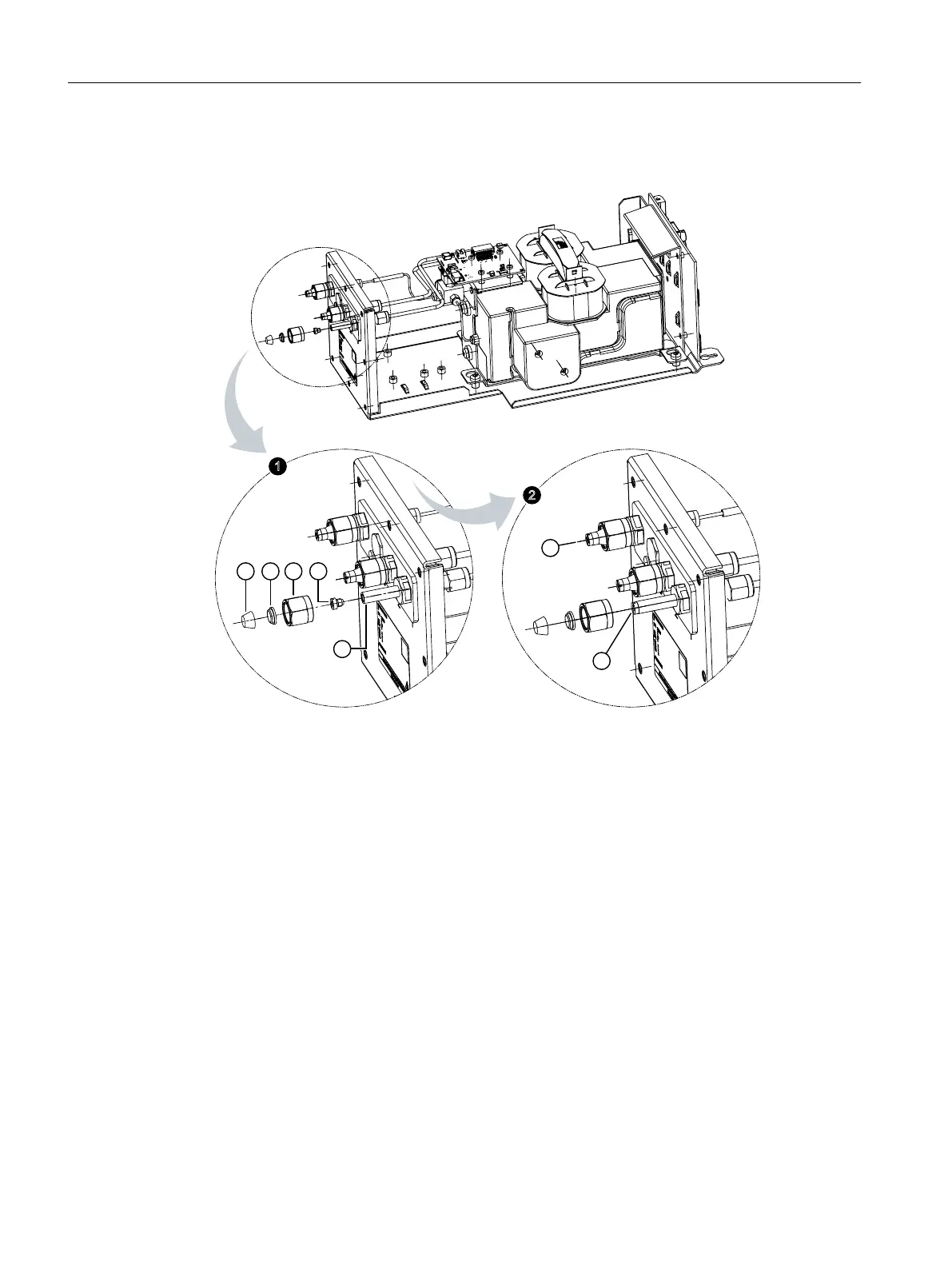

Overview of mounting position








① Gas connection before installation of sample gas restrictor or clamping screw
② Gas connection after installation of sample gas restrictor or clamping screw
③ Front clamp ring
④ Rear clamp ring
⑤ Union nut
⑥ Sample gas restrictor or clamping screw
⑦ Gas connection
⑧ Correctly installed gas connection
⑨ Gas connection nozzle with sample gas restrictor or clamping screw
Figure5-4 Mounting position sample gas restrictor or clamping screw using an OXYMAT 7 as an
example
Combined operation
5.3Structure of the gas connections
Wall-mounted device
