Siemens SIPROCESS GA700 Operating Instructions

450
770

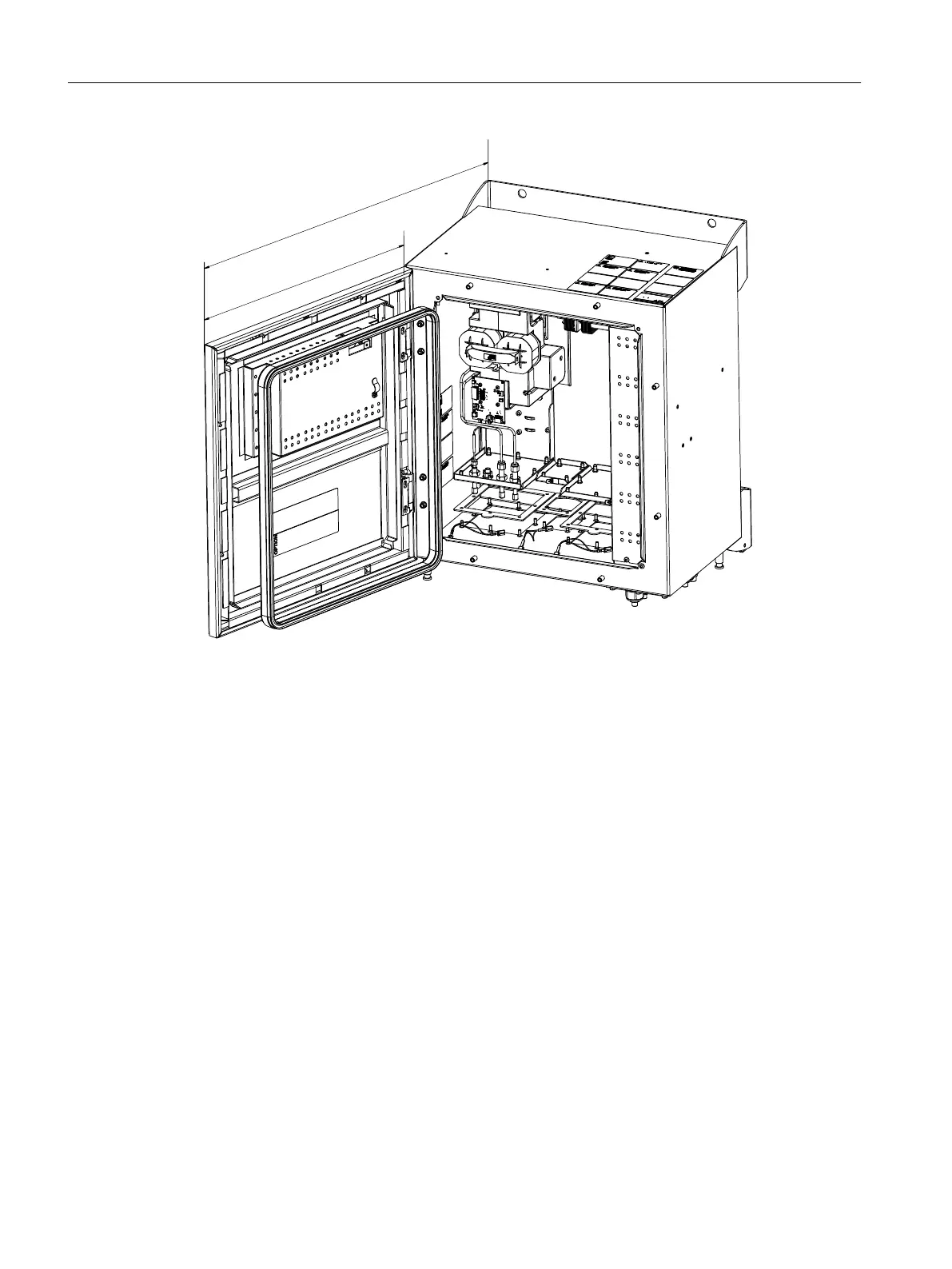

Figure6-2 Dimensions with open wall-mounted device
Procedure
1. Drill four holes into the wall.
The dimensions for the drill holes are speci󹪝ed in the drilling pattern.
2. Insert the anchors in the drilled holes.
3. Position the wall-mounted device on the wall and fasten it with the screws.
Installing the device
6.3Installing the wall-mounted device
Wall-mounted device
64 Operating Instructions, 07/2023, A5E31930403-AB
