Siemens SIPROCESS GA700 Operating Instructions

Mounting locations
The wall enclosure has been prepared for the installation of up two option modules.
Install option module OM 1.1 at mounting location ③, and option module OM 2.1 or OM 2.2
at mounting location ②.




$
$

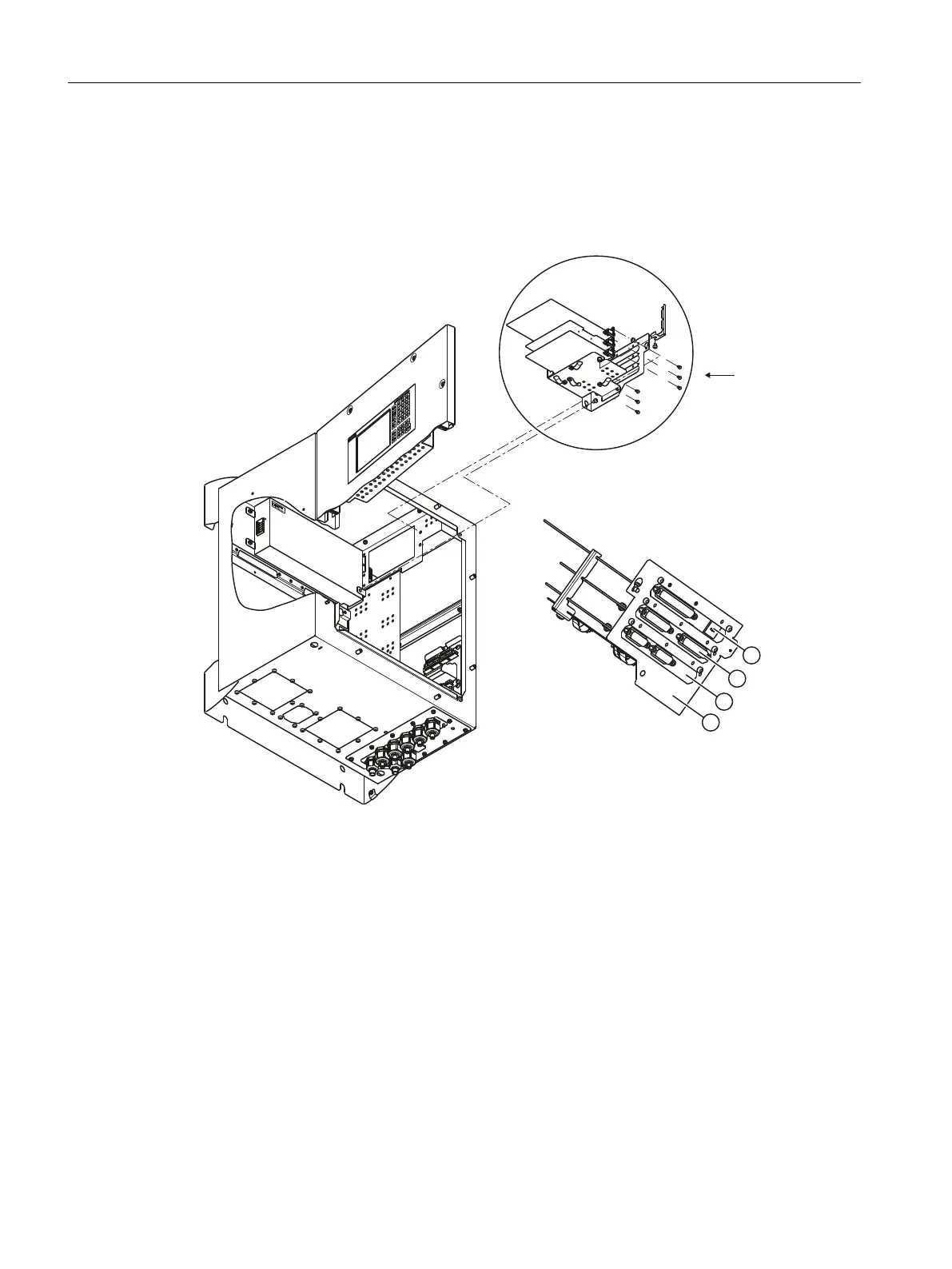

① Electronics base plate ③ Mounting location OM 1.1
② Mounting location OM 2.1 or OM 2.2 ④ Processing unit
Figure7-12 Mounting locations of option modules
Installing / removing and connecting analyzer and option modules
7.11Installing option modules
Wall-mounted device
82 Operating Instructions, 07/2023, A5E31930403-AB
