NOTE
Observe the direction of the connecting cable.
Note that the available cable end for the connection of the 2nd device row must be longer than the cable
end for the connection of the 1st device row.
²
Insert the cable in the rubber seals, and introduce the seals in the slot of the angle rail (see Figure 5-3)
Assembling the Devices
²
Install the angle rail.
²
Install the 1st device row above the angle rail.
²
Install the 2nd device row below the angle rail.
²
Screw the 2 handle moulds of the connecting cable to the 1st and 2nd device row.
NOTE
Make sure that the handle moulds are not rotated during assembly so as not to damage the contact
surfaces of the plugs.
[dw_2zauba-020414-01, 2, --_--]

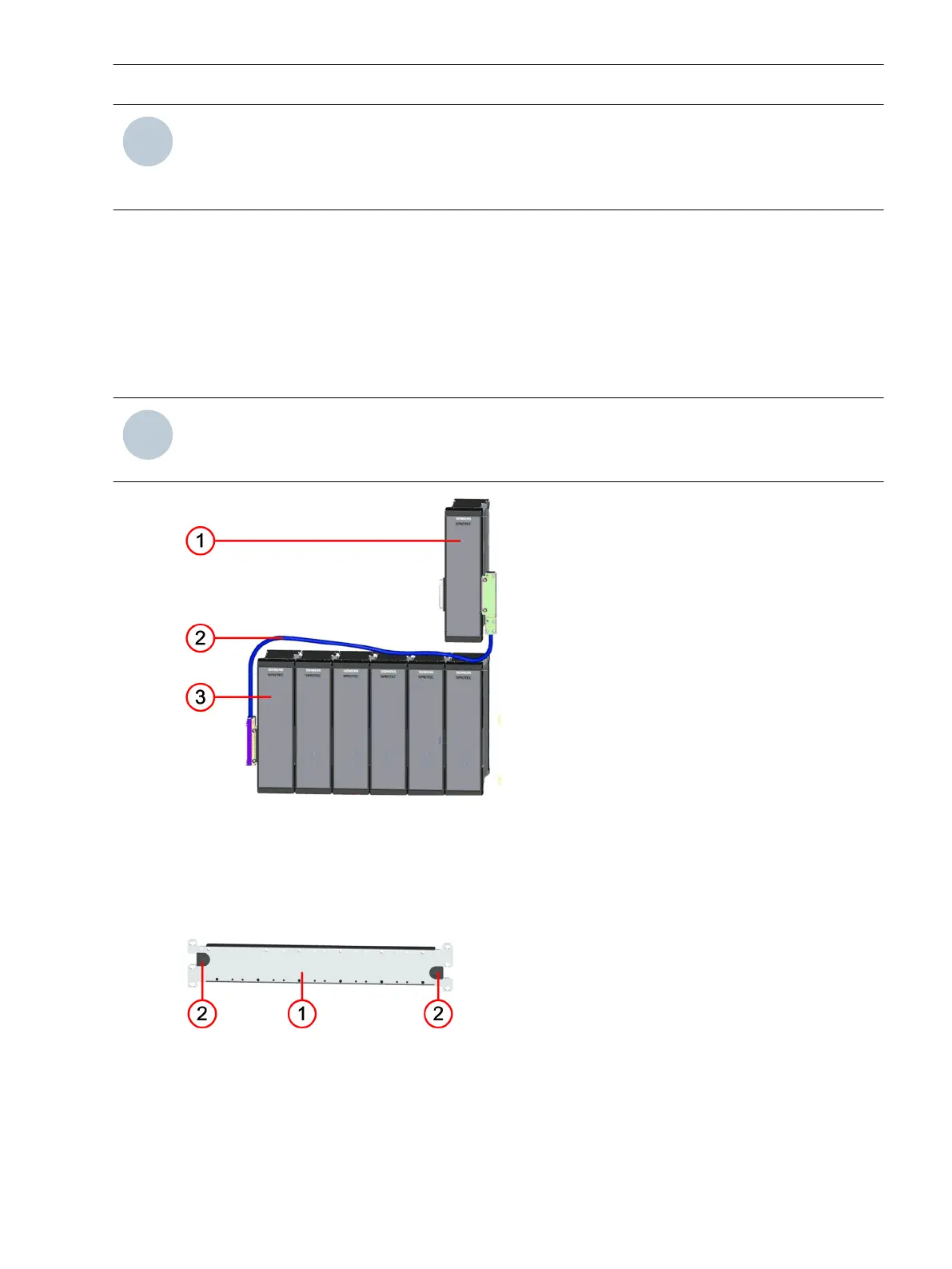

Figure 5-2 Expansion with 2nd Device Row
(1) Extreme right expansion module of the 1st device row
(2) Connecting cable
(3) 2nd device row
[dw_schiene-020414-01, 1, --_--]
Figure 5-3 Angle Rail
(1) Angle rail
(2) 2 Rubber seals
Working on the Device
5.2 Expanding Modular Devices
SIPROTEC 5, Hardware Description, Manual 187
C53000-G5040-C002-M, Edition 12.2021
