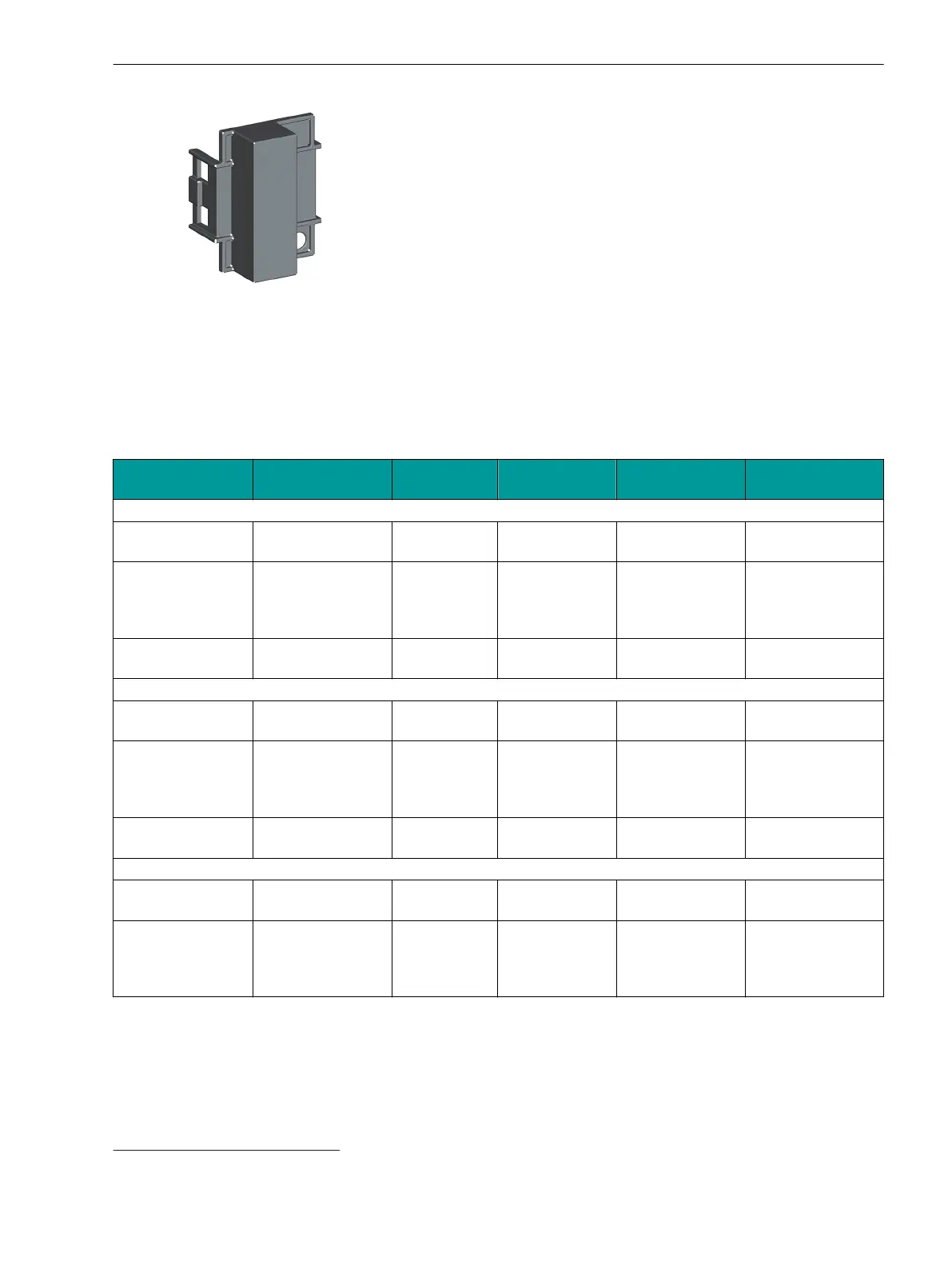

Figure 5-27 Covering Cap for Voltage-Terminal Block
Cover caps for sealing the connector interface of the terminal block can be ordered as accessories.
Terminal Designations
The current terminals have different designations in DIGSI, the configurator, and the device. The following
table provides an overview of the different terminal designations and order numbers of the terminals.
Terminal Configurator DIGSI Display on the
Device
Terminal Labeling Ordering No.
(Short Designation)
Modular Device 50/60 Hz
4 protection-class
current transformers
TypeA-Curr.term., 4x
prot.tion
Current
4x protection
TBC4PROTA C73334A 1A187*
P1Z512
18
3 protection-class
current transformers
and 1 instrument
transformer
TypeA-Curr.term.,
3xprot. 1xsens.
Current 3x
prot., 1x sensi-
tive
TBC3PROTA1M C73334A 1A188*
P1Z529
18
4 instrument trans-
formers
TypeA-Curr.term., 4x
measurem
Current
4x sensitive
TBC4M C73334A 1A189*
P1Z536
18
Modular Device 50/60/16.7 Hz
4 protection-class
current transformers
TypeA-Curr.term., 4x
prot.
Current
4x protection
TBC4PROTA C73334A 1A177* P1Z512
3 protection-class
current transformers
and 1 instrument
transformer
TypeA-Curr.term.,
3xprot. 1xsens.
Current 3x
prot., 1x sensi-
tive
TBC3PROTA1M C73334A 1A178* P1Z529
4 instrument trans-
formers
TypeA-Curr.term., 4x
measurem
Current
4x sensitive
TBC4M C73334A 1A179* P1Z536
Non-Modular Device
4 protection-class
current transformers
TypeB-Curr.term., 4x
prot.
Current
4x protection
TBC4PROTB C73334A 1A185* P1Z1869
3 protection-class
current transformers
and 1 instrument
transformer
TypeB-Curr.term.,
3xprot. 1xsens.
Current 3x
prot., 1x sensi-
tive
TBC3PROTB1M C73334A 1A186* P1Z1647
18
The equivalent 50/60/16.7-Hz terminal is used as a reorderable single part.
Working on the Device
5.7 Installing Current and Voltage Terminals
SIPROTEC 5, Hardware Description, Manual 215
C53000-G5040-C002-M, Edition 12.2021
To Next Page
