Siemens SIPROTEC 5 V8.83 User Manual

[dw_first and second device row, 1, en_US]

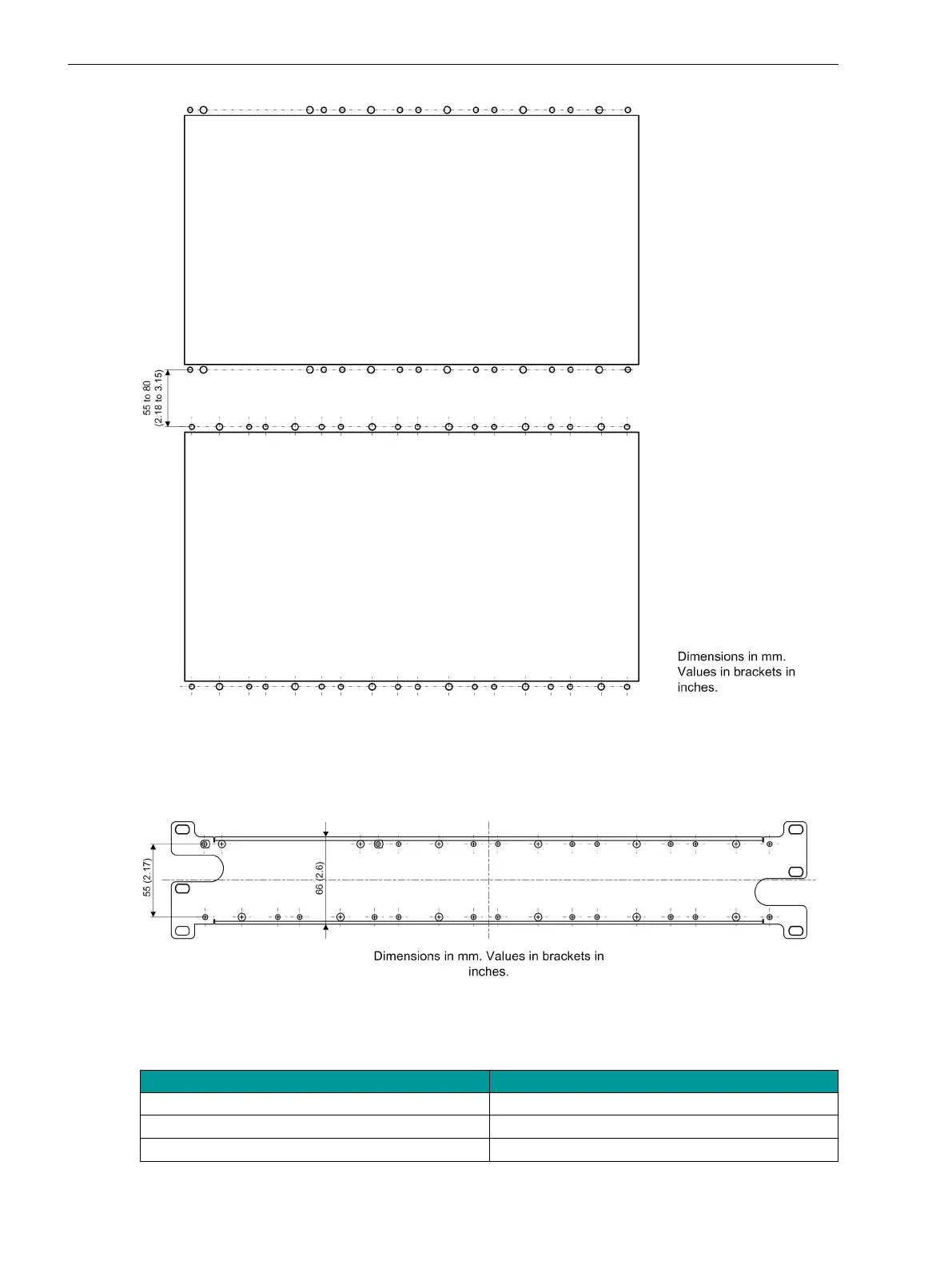

Figure 6-11
Drilling Pattern – 1/1 Device, 1st and 2nd Device Row
Siemens recommends a drilling space of at least 55 mm (2.17 in) between the 1st and 2nd device row. The
maximum space may be about 80 mm (3.15 in) due to the length of the connecting cable. The length of the
cable is 890 mm (35.04 in) from the center of the plug to the center of the plug.
[dw_angle rail, 1, en_US]
Figure 6-12 Angle Rail for Connection of the 1st and 2nd Device Row
Table 6-7 Cut-Out Widths
Width of the Assembly Opening in mm (in Inches)
1/3 device (base module)
146
+2
mm (5.75
+0.08
)
1/2 device (base module with one expansion module)
221
+2
mm (8.7
+0.08
)
2/3 device (base module with 2 expansion modules)
296
+2
mm (11.65
+0.08
)
Technical Data
6.14 Assembly Dimensions
256 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
