Width of the Assembly Opening in mm (in Inches)
5/6 device (base module with 3 expansion modules)
371
+2
mm (14.61
+0.08
)
1/1 device (base module with 4 expansion modules)
447
+2
mm (17.6
+0.08
)
Table 6-8 Variable Housing Widths
Dimension a
Housing Widths in mm (in Inches)
(Total Width: Housing Width + 4.6 mm (0.18 in))
1/3 device 145 (5.71)
1/2 device 220 (8.66)
2/3 device 295 (11.61)
5/6 device 370 (14.57)
1/1 device 445 (17.52)

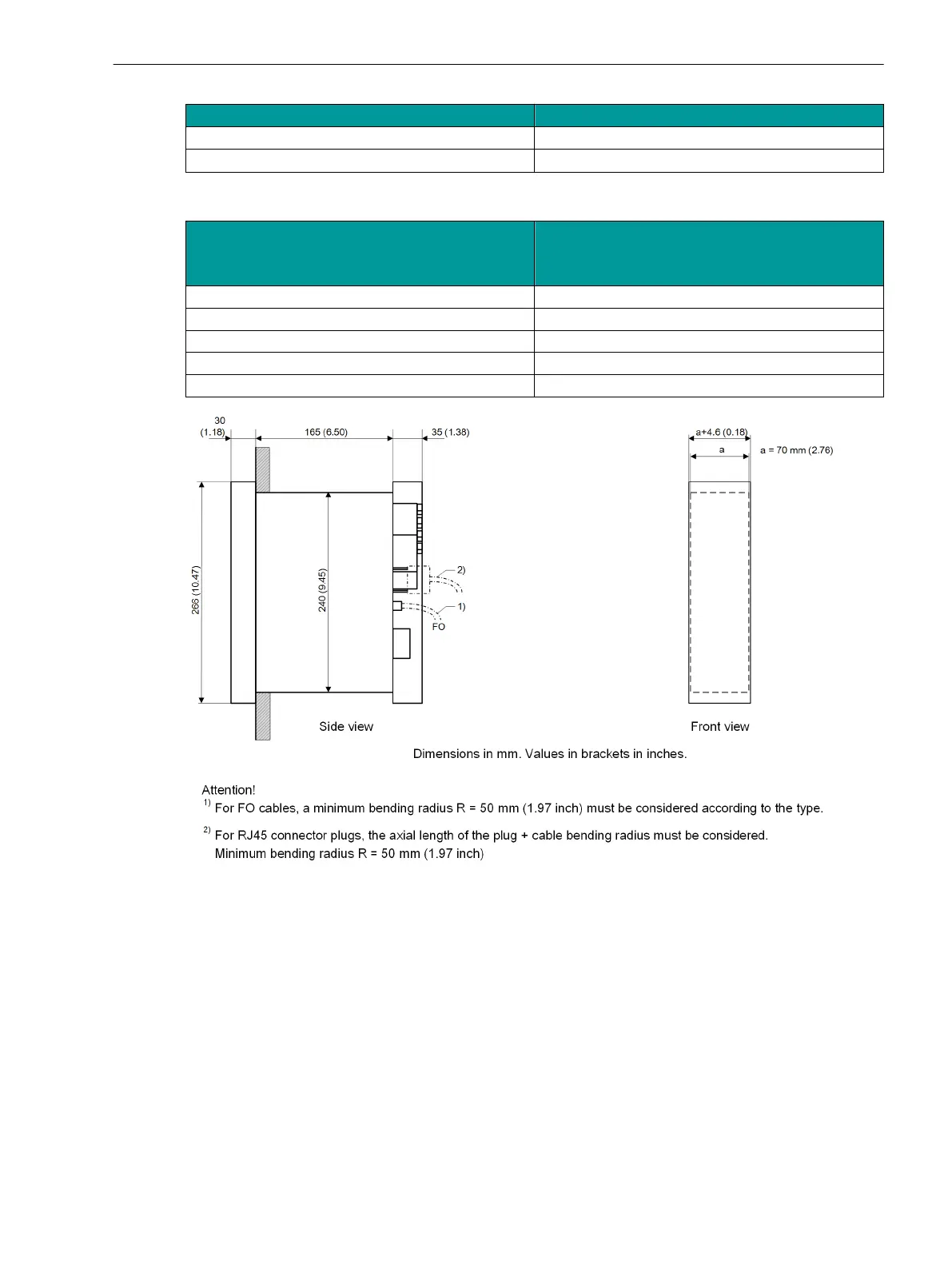

[dw_surface_mounting_in_SIP5Comp, 3, en_US]
Figure 6-13
Flush-Mounting Devices, Dimensions from the Side and Front Views
Technical Data
6.14 Assembly Dimensions
SIPROTEC 5, Hardware Description, Manual 257
C53000-G5040-C002-M, Edition 12.2021
