[dwbohrge-2_3.vsd, 2, en_US]

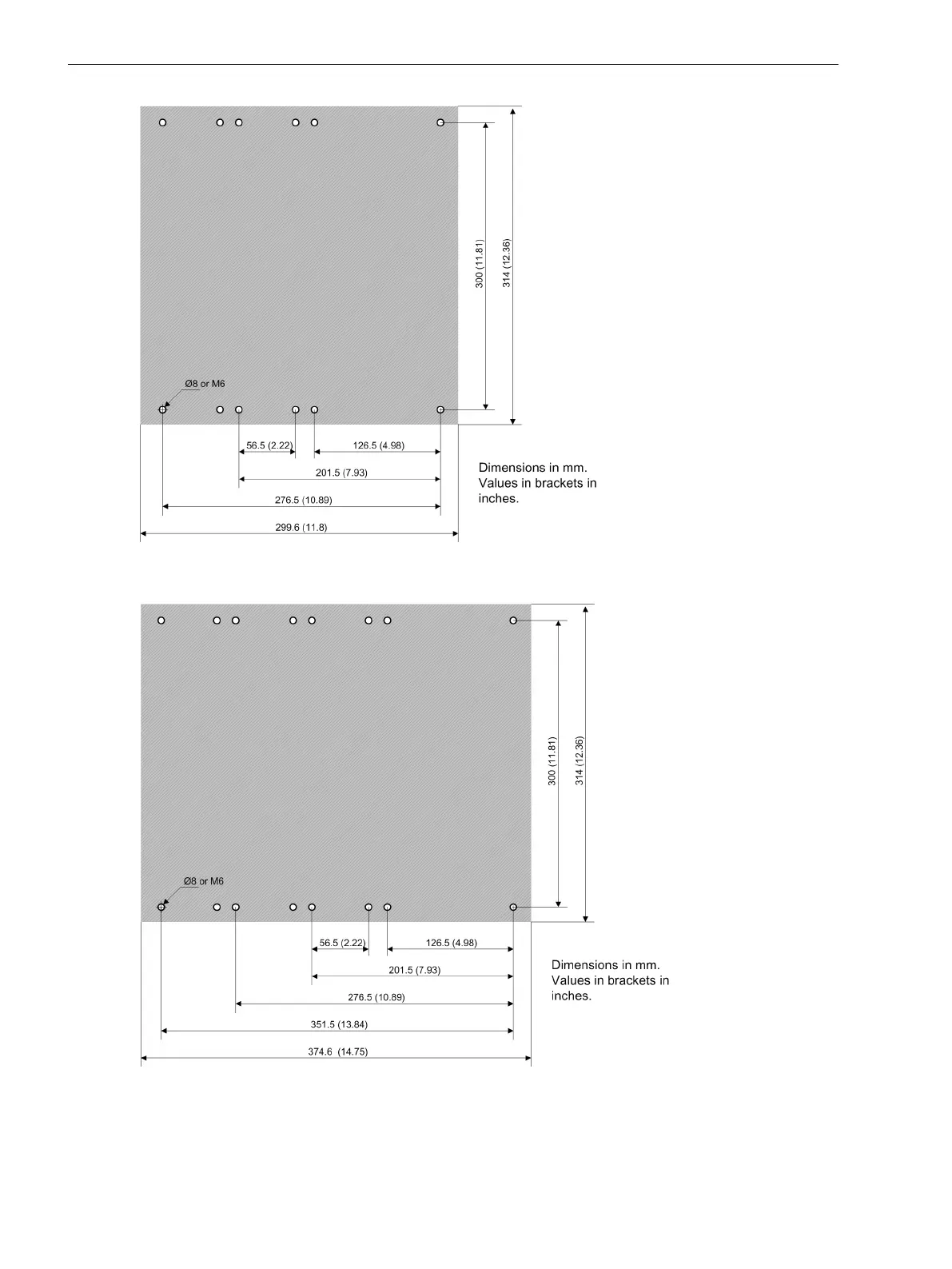

Figure 6-17
Drilling Pattern of a 2/3 Surface-Mounted Device – 1st Device Row
[dwbohrge-5_6.vsd, 2, en_US]
Figure 6-18
Drilling Pattern of a 5/6 Surface-Mounted Device – 1st Device Row
Technical Data
6.14 Assembly Dimensions
260 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
