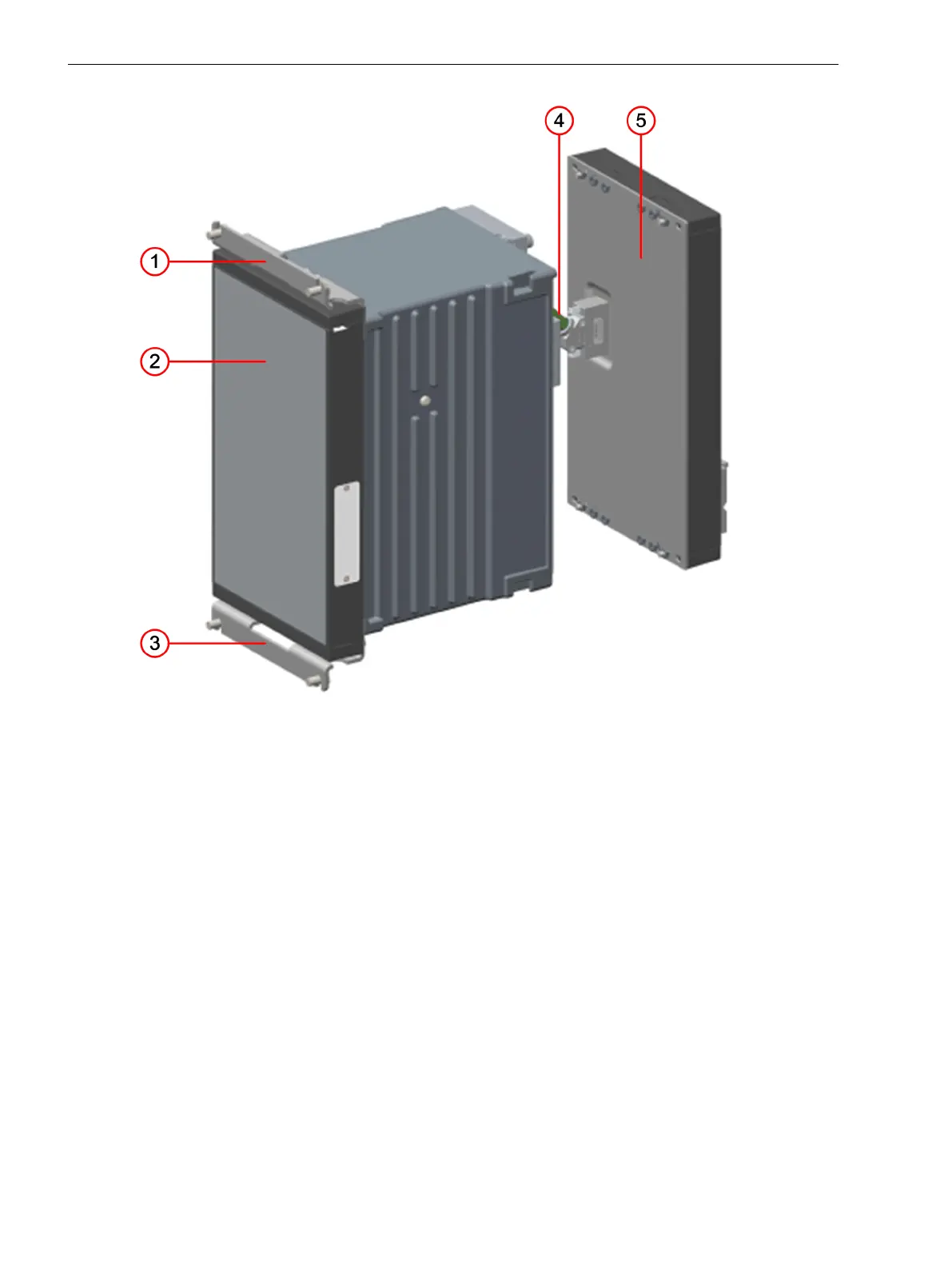

Figure 2-17
Device Structure of the Base Module
(1) Top fixing bracket
(2) Cover
(3) Bottom fixing bracket
(4) Connecting cable between the base module and the on-site operation panel
(5) Rear plate of the on-site operation panel
Forms of Devices and On-Site Operation Panels
2.3 Surface-Mounted Devices with Detached On-Site Operation Panel
36 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
