Fastening Openings
[dwbaaube-040211-01.tif, 2, --_--]

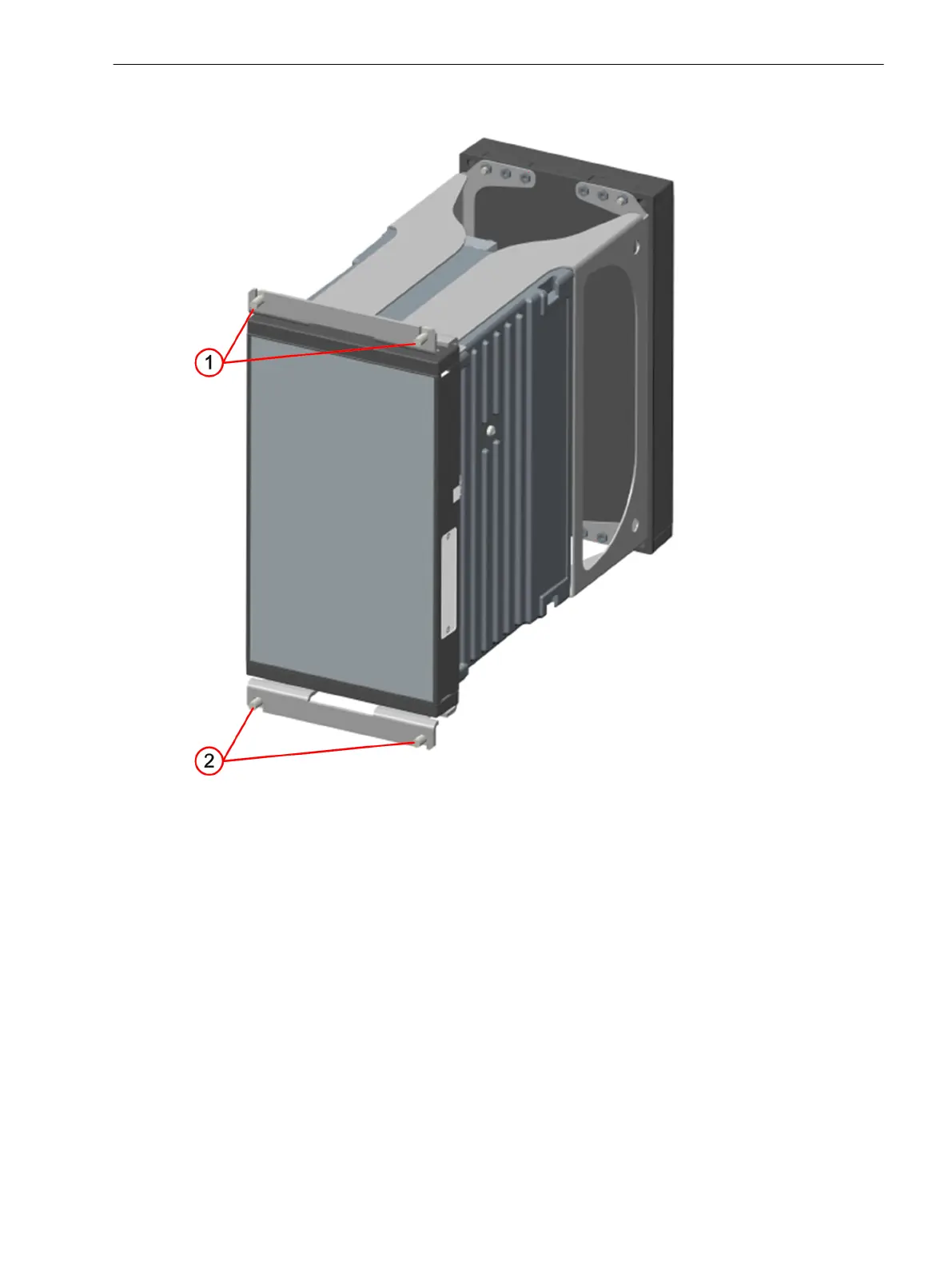

Figure 2-18
Device Structure of the Base Module
(1) Top fastening openings with fastening screw
(2) Bottom fastening openings with fastening screw
Forms of Devices and On-Site Operation Panels
2.3 Surface-Mounted Devices with Detached On-Site Operation Panel
SIPROTEC 5, Hardware Description, Manual 37
C53000-G5040-C002-M, Edition 12.2021
