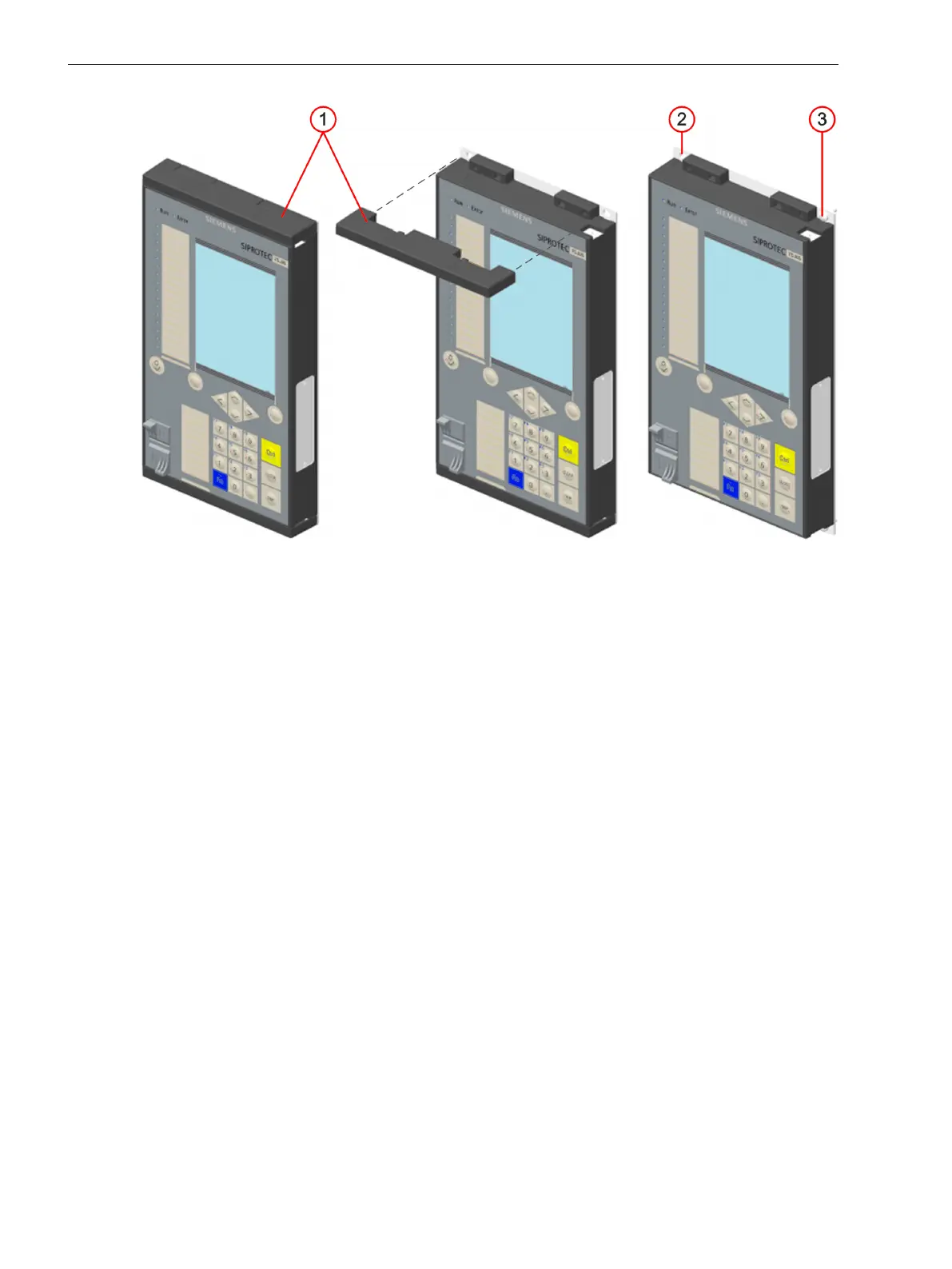

Figure 2-19
Fastening Openings for the On-Site Operation Panel
(1) Screw cover (pull towards you to remove)
(2) Fastening opening
(3) Fastening opening with fastening screw
Forms of Devices and On-Site Operation Panels
2.3 Surface-Mounted Devices with Detached On-Site Operation Panel
38 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
