The 2-pole voltage terminal is used for the external power supply (see Figure 3-17).

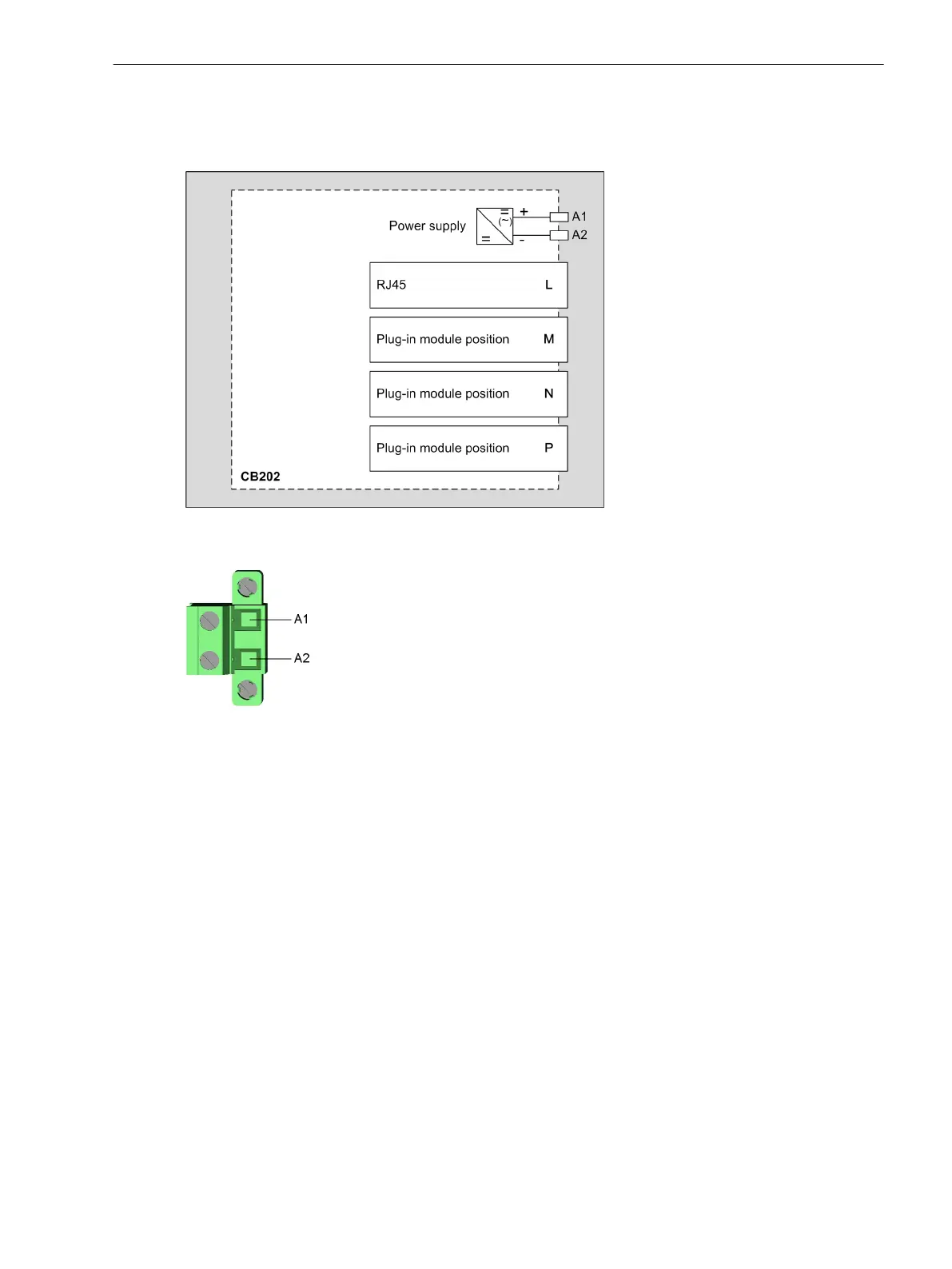

Connection Diagram
[tdcb202x-100713-01.tif, 2, en_US]
Figure 3-16 CB202 – Connection Diagram
[dwkl2pol-030211-01.tif, 1, --_--]
Figure 3-17 Connection of External Power Supply
Electronic Modules
3.1 Power-Supply Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 61
C53000-G5040-C002-M, Edition 12.2021
