Functions
2.5 Voltage Protection 27, 59
SIPROTEC, 7SK80, Manual
E50417-G1140-C344-A4, Release date 08.2010
105
Figure
2-29

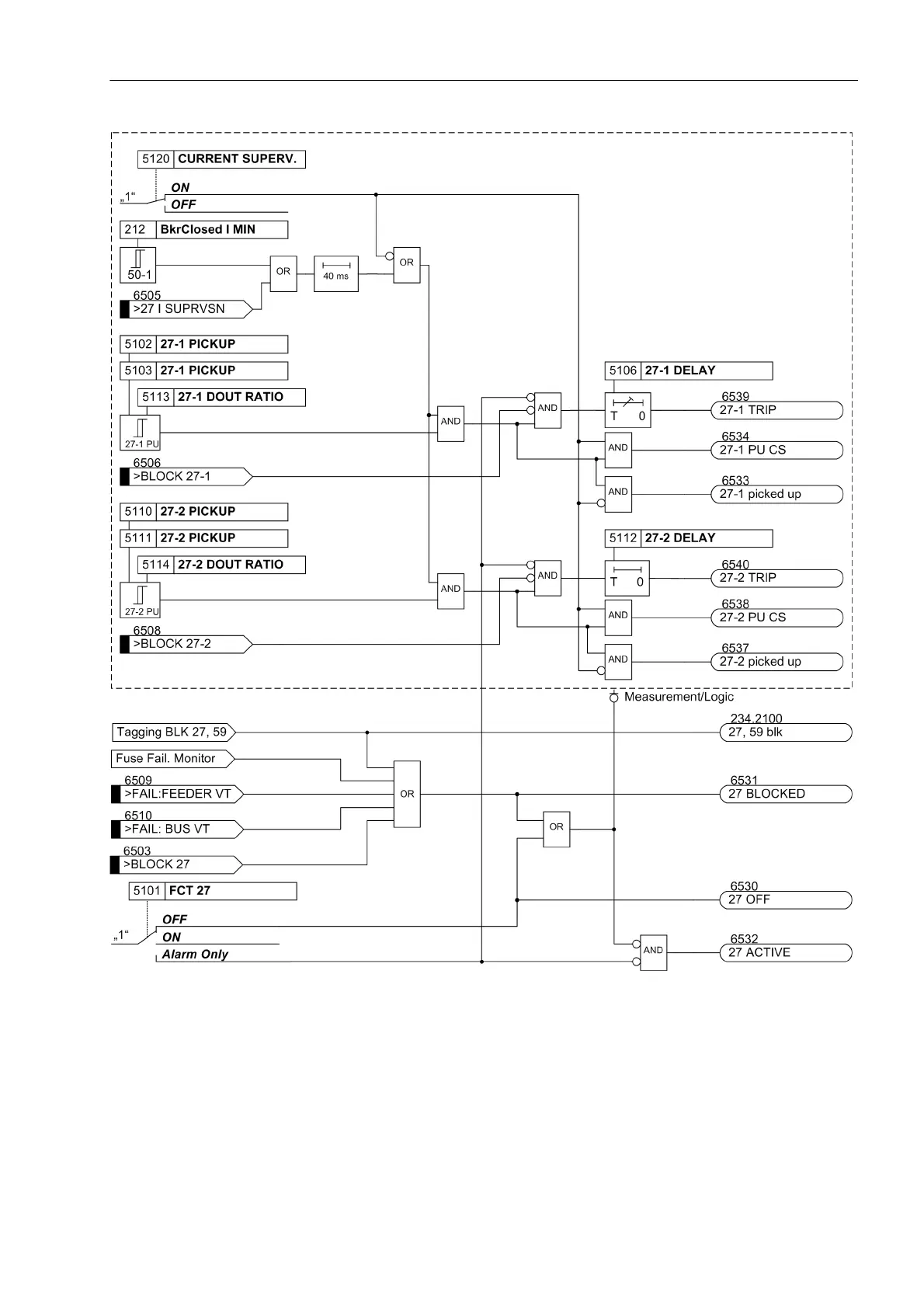

Logic diagram of
the undervoltage protection
104
106
