Appendix
A.5 Default Settings
SIPROTEC, 7SK80, Manual
E50417-G1140-C344-A4, Release date 08.2010
430
A.5.5 Default Display
A number of pre-defined measured value pages are available depending on the device type. The start page of
the default display appearing after startup of the device can be selected in the device data via parameter 640
Start image DD.
for the 6-line Display of 7SK80

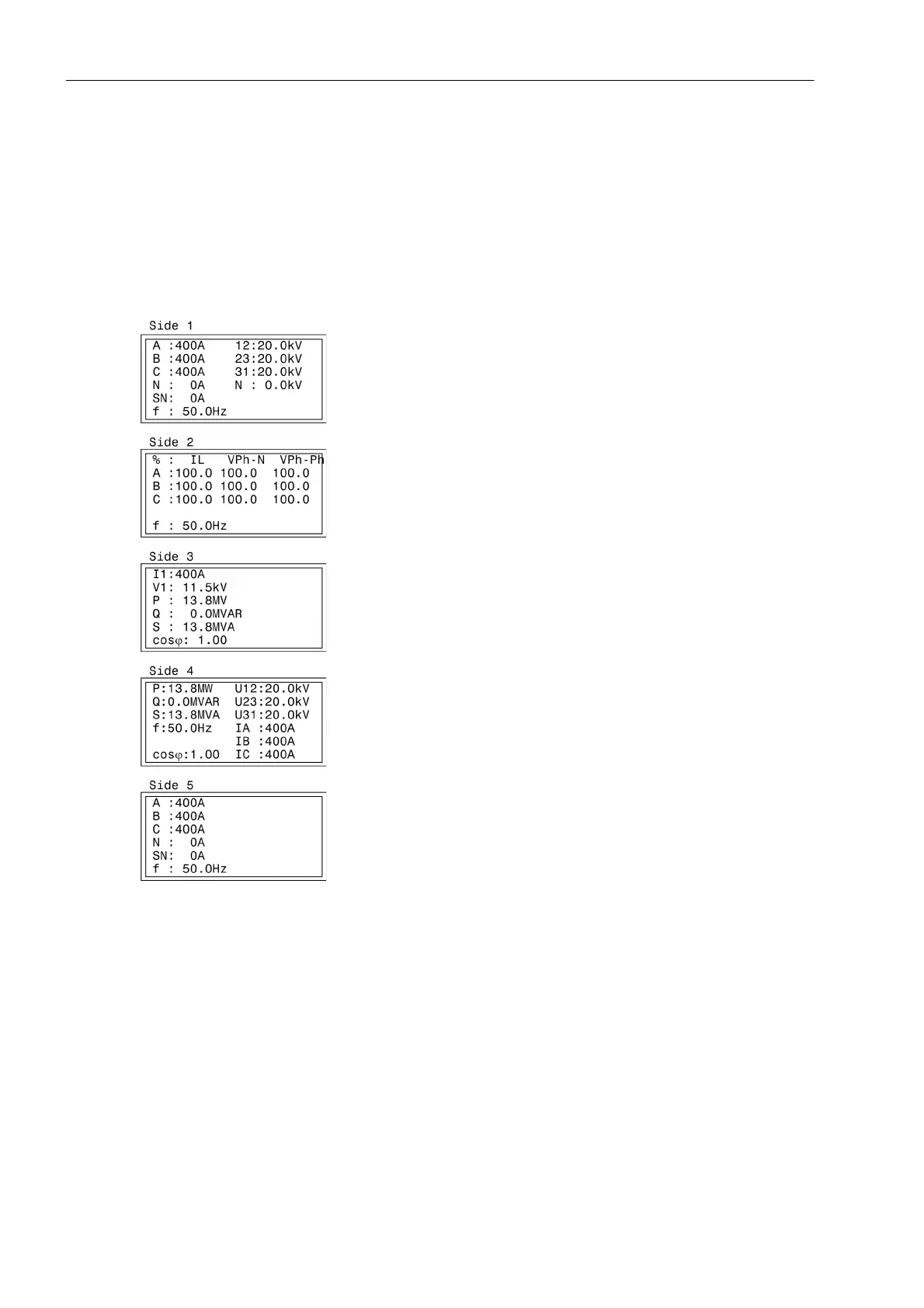

Figure A-29 Default display of the 7SK80 for models with V without extended measured values
With the V0/IO ϕ measurement, the measured ground current IN2 is displayed under N and the ground current
IN or INs under Ns.
