Siemens SIPROTEC 7SK80 User Manual

Appendix
A.3 Connection Examples
SIPROTEC, 7SK80, Manual
E50417-G1140-C344-A4, Release date 08.2010
422

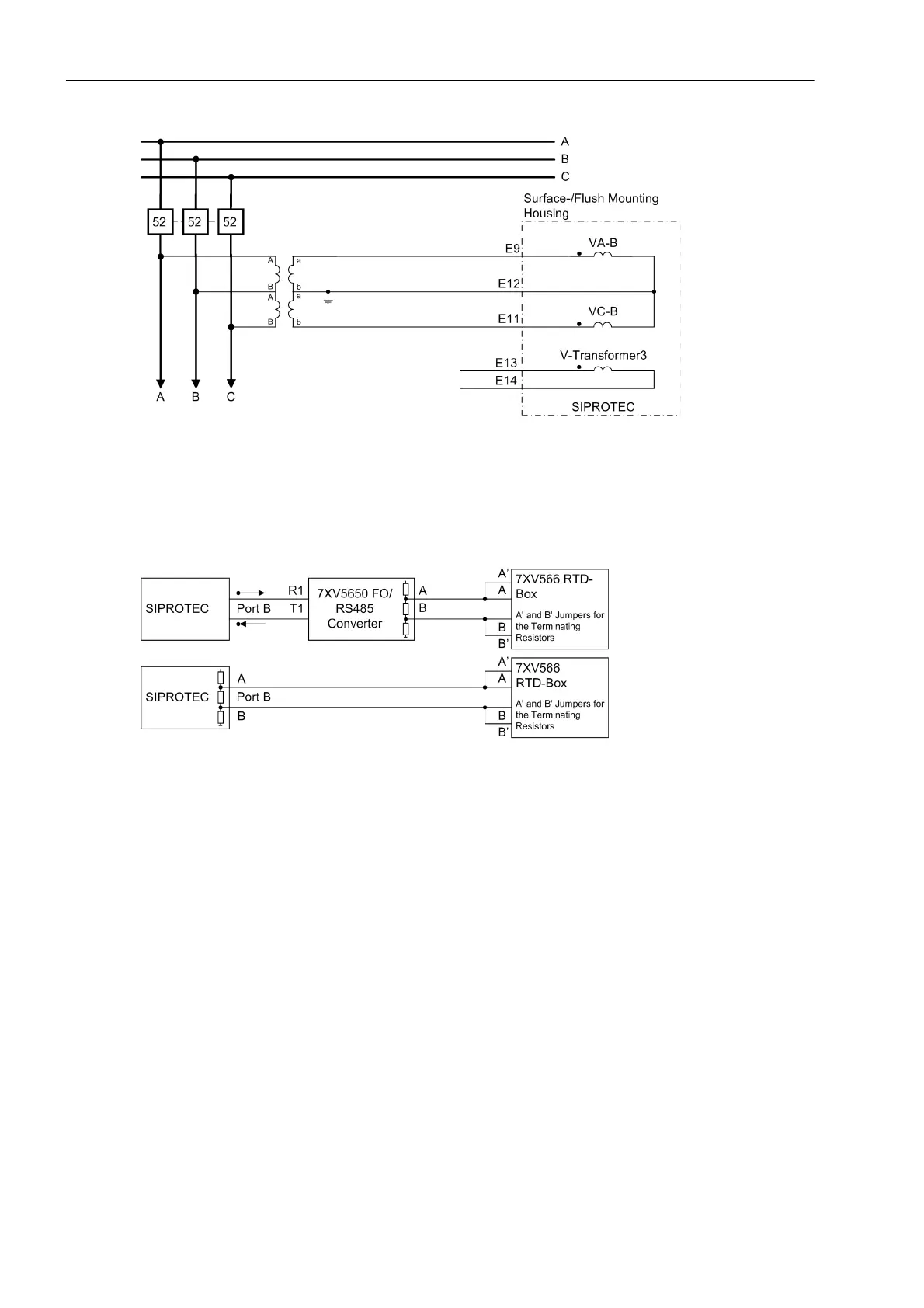

Figure A-25 Example for connection type "VAB, VBC" with phase voltage connection as open-delta
connection
A.3.1 Connection Examples for RTD Box
Figure A-26 Simplex operation with one RTD-Box, above: optical design (1FO); below: design with RS 485.
Optional Ethernet via Port A (EN100–LC).
