Mounting and Commissioning
3.2 Checking Connections
SIPROTEC, 7SK80, Manual
E50417-G1140-C344-A4, Release date 08.2010
306
3.2 Checking Connections
3.2.1 Checking the Data Connections of the Interfaces
Pin Assignment
The following tables show the pin assignment of the various interfaces. The position of the connections can be
seen in the following figures.

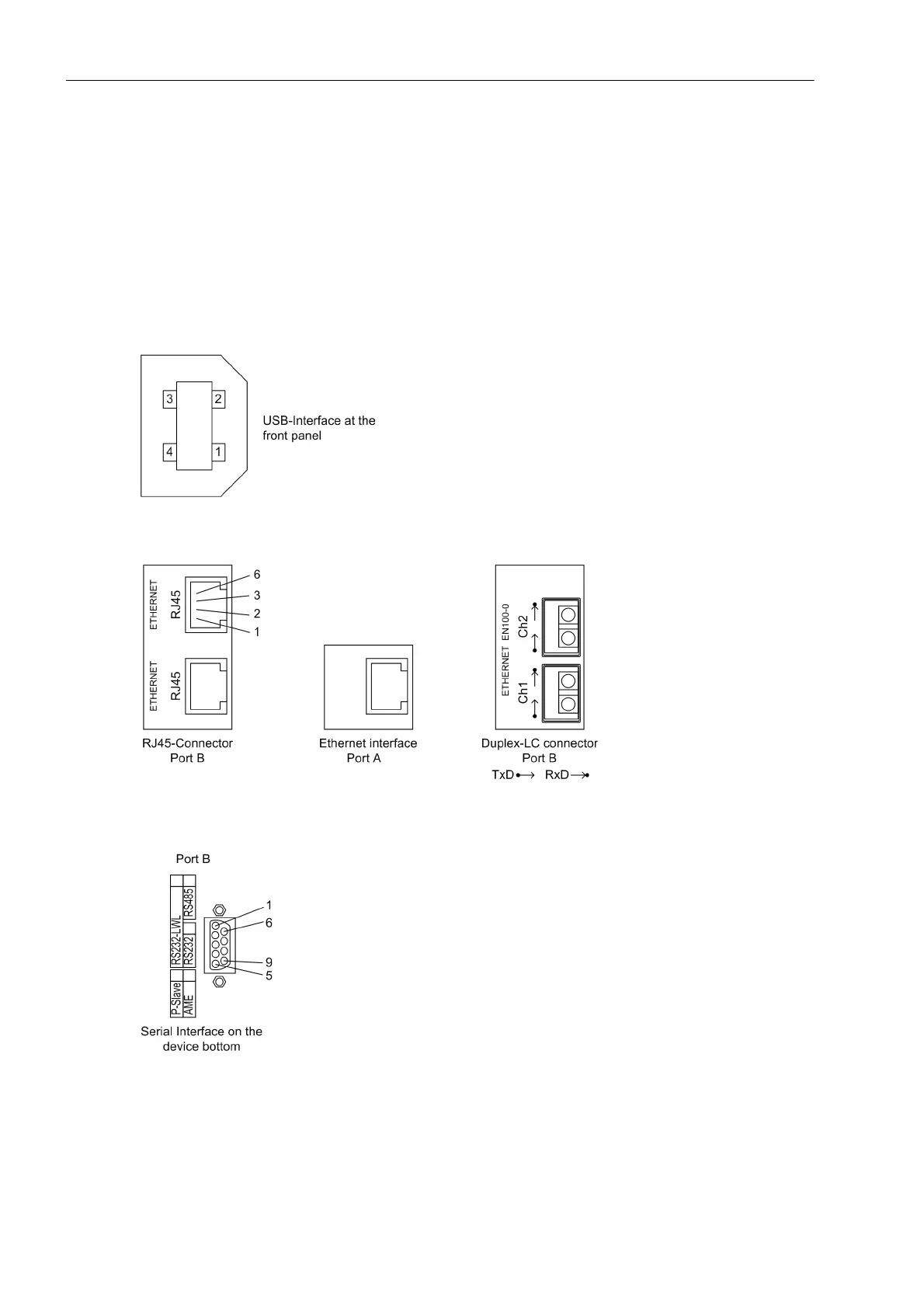

Figure 3-18 USB interface
Figure 3-19 Ethernet connections at the device bottom
Figure 3-20 Serial interface at the device bottom
