3.1 Mounting and Connections
SIPROTEC, 7SK80, Manual
E50417-G1140-C344-A4, Release date 08.2010
302
3.1.3 Installation
3.1.3.1 General
The 7SK80 relay has a housing size 1/6. The housing has 2 covers and 4 fixing holes each at the top and
bottom (see Figure 3-13 and Figure 3-14).

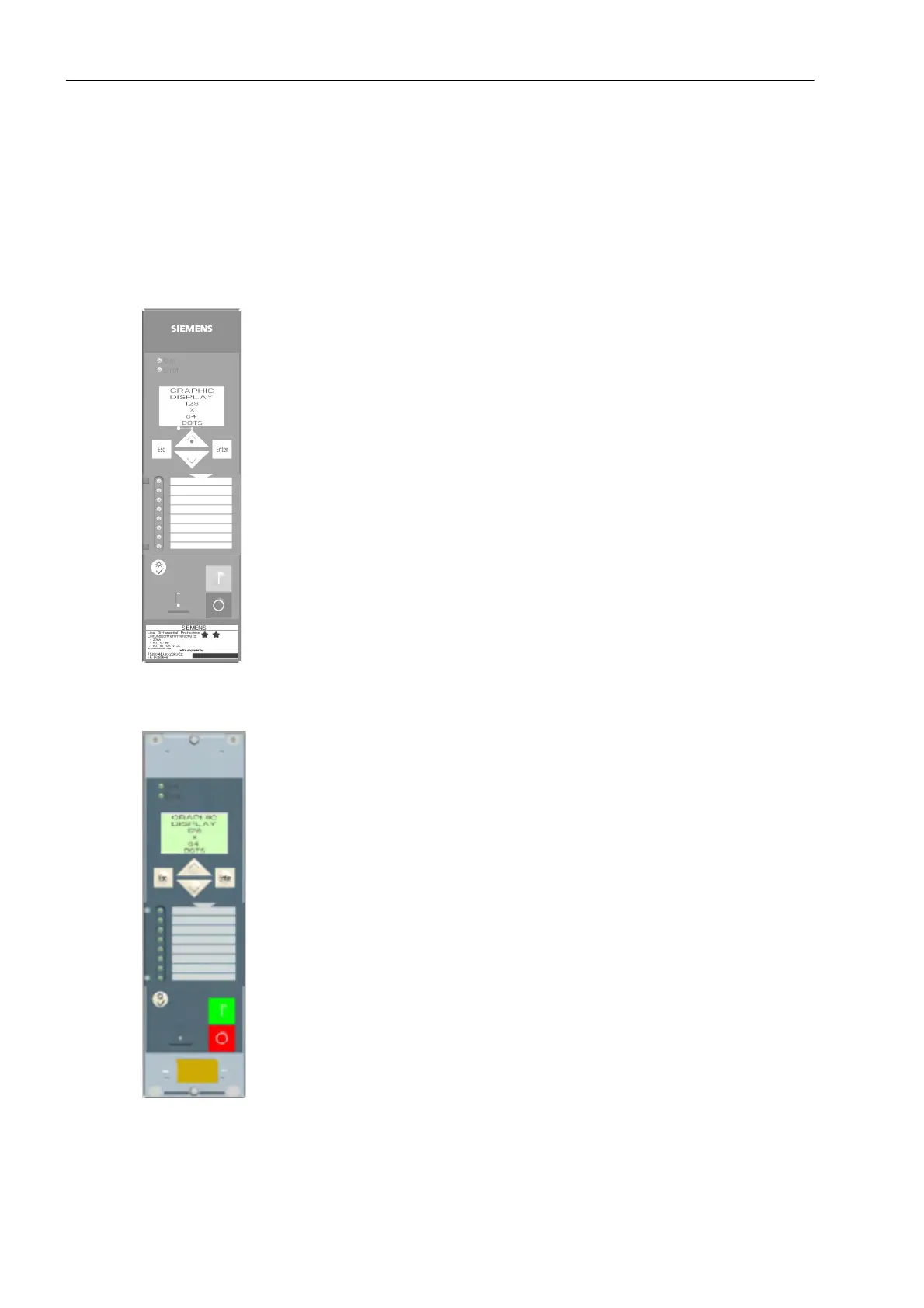

Figure 3-13 Housing with covers
Figure 3-14 Housing with fixing holes (without covers)
