Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC, 7SK80, Manual
E50417-G1140-C344-A4, Release date 08.2010
301

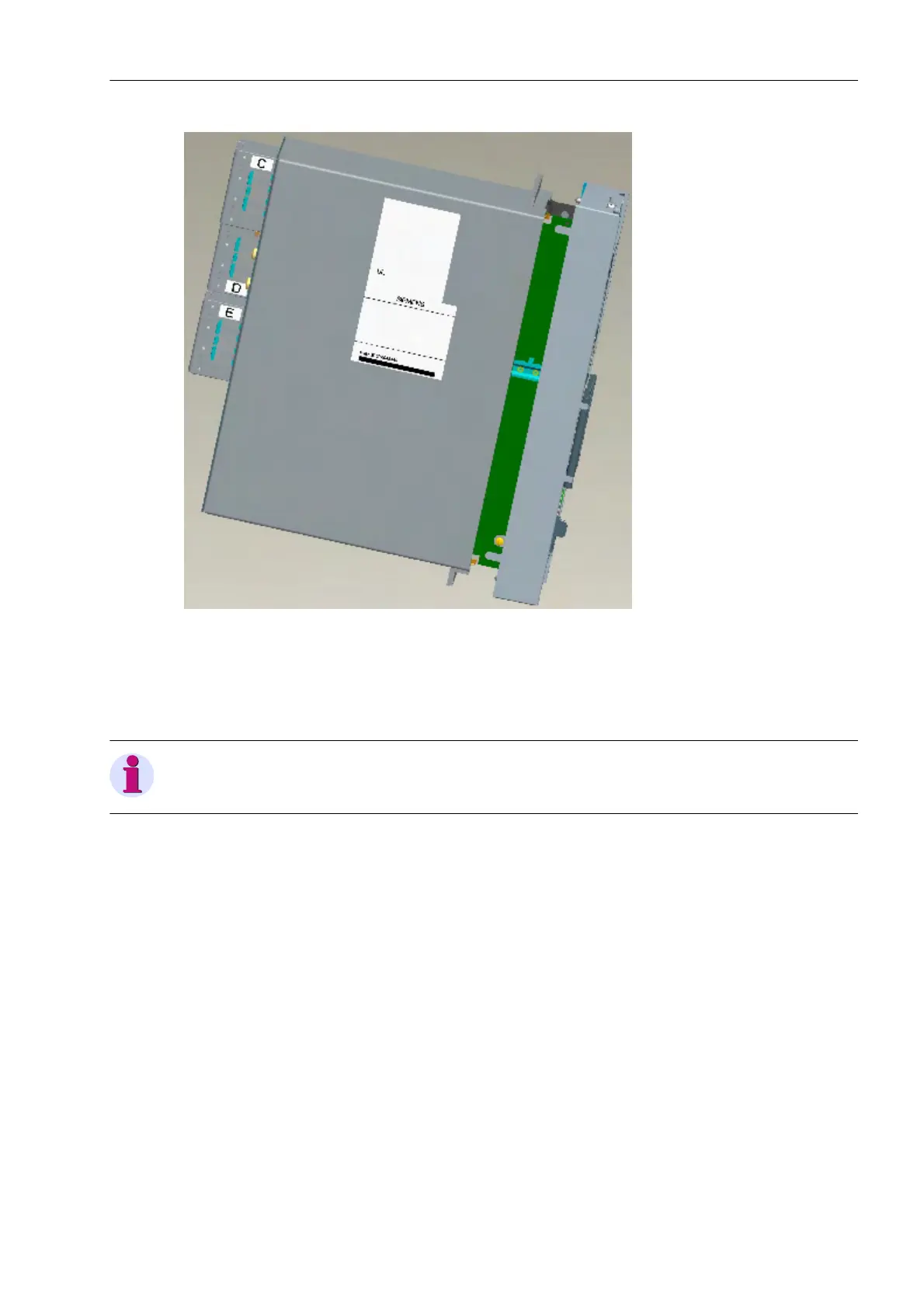

Figure 3-12 Reassembling of the device
Fix the front cover to the housing with the two medium screws at the top and bottom of the front cover. The two
covers can be inserted again either now or after the reinstallation of the device. Now install the device in accor-
dance with the Sections Panel Flush Mounting, Panel Surface Mounting or Cubicle Mounting.
Note
Insert the current and voltage terminal blocks again and lock them in place!
