Functions
2.12 Breaker Failure Protection 50BF
SIPROTEC, 7SK80, Manual
E50417-G1140-C344-A4, Release date 08.2010
202

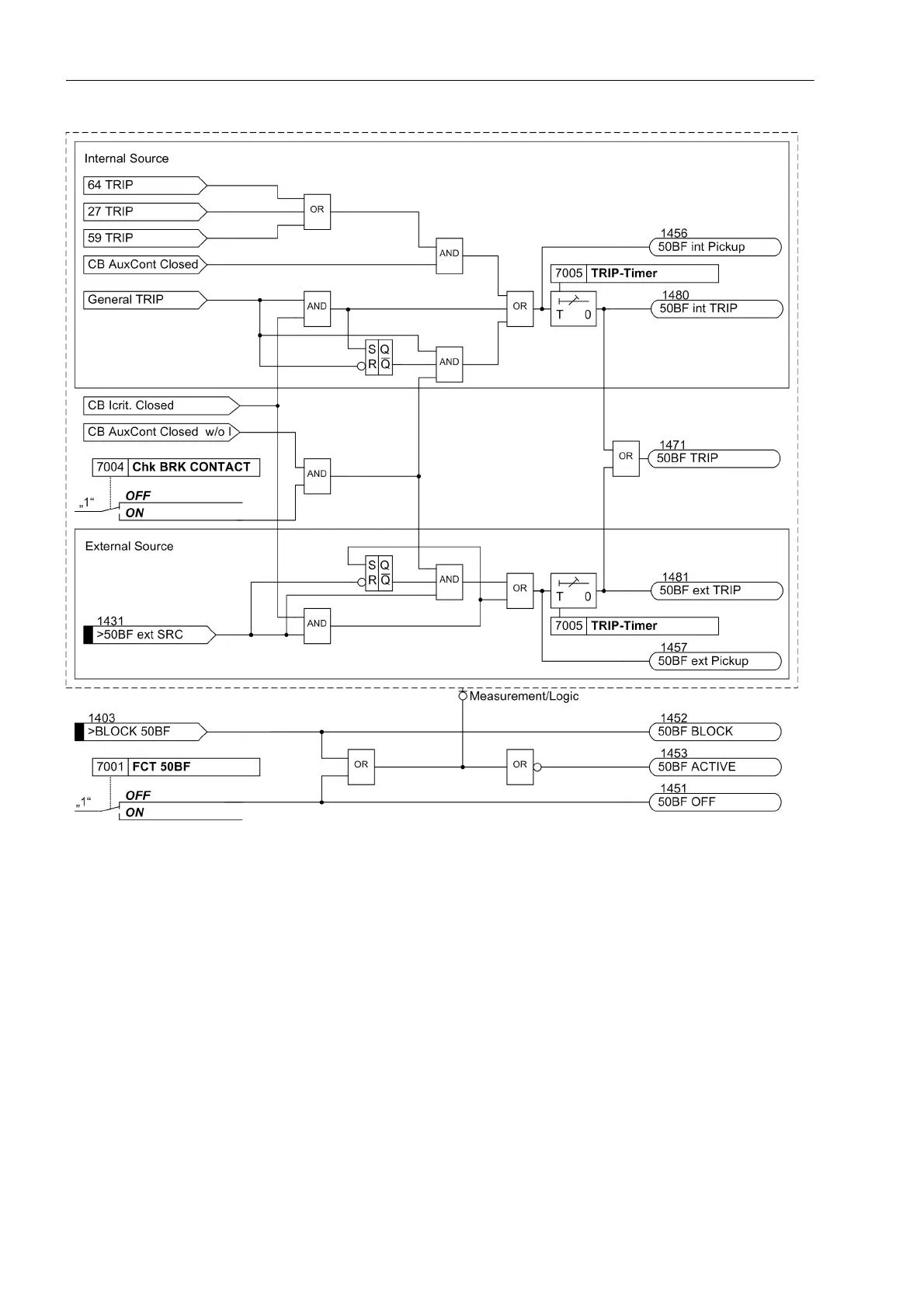

Figure 2-75 Logic diagram of the breaker failure protection
