Functions
2.14 Reverse-Power Protection Application with Flexible Protection Function
SIPROTEC, 7SK80, Manual
E50417-G1140-C344-A4, Release date 08.2010
225

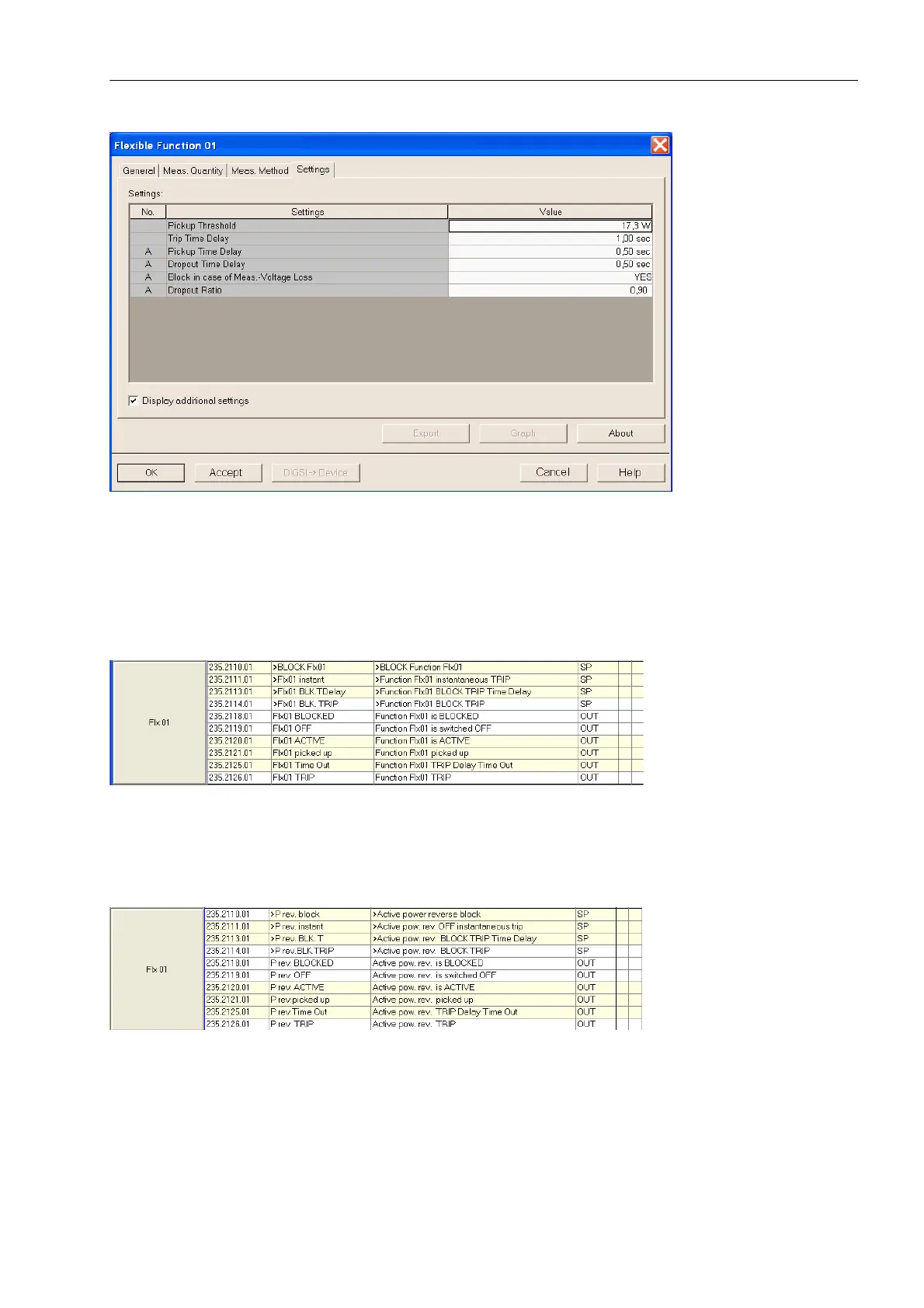

Figure 2-84 Setting options for the flexible function
Allocation of the Reverse Power Protection
The DIGSI configuration matrix initially shows the following indications (after having selected „Indications and
commands only“ and „No filter“):
Figure 2-85 Information of the flexible function – default setting
Clicking the texts allows for editing short text and long text as required by the application.
Figure 2-86 Messages of the flexible function – application-oriented, example
The indications are allocated in the same way as the indications of other protection functions.
