Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC, 7SK80, Manual
E50417-G1140-C344-A4, Release date 08.2010
289
If the calculation has the result R
max
< R
min
, the calculation has to be repeated with the next smaller threshold
V
BI min
. This threshold is determined via the parameters 220 Threshold BI 1 to 226 Threshold BI 7 The
settings Thresh. BI 176V, Thresh. BI 88V, Thresh. BI 19V are possible.

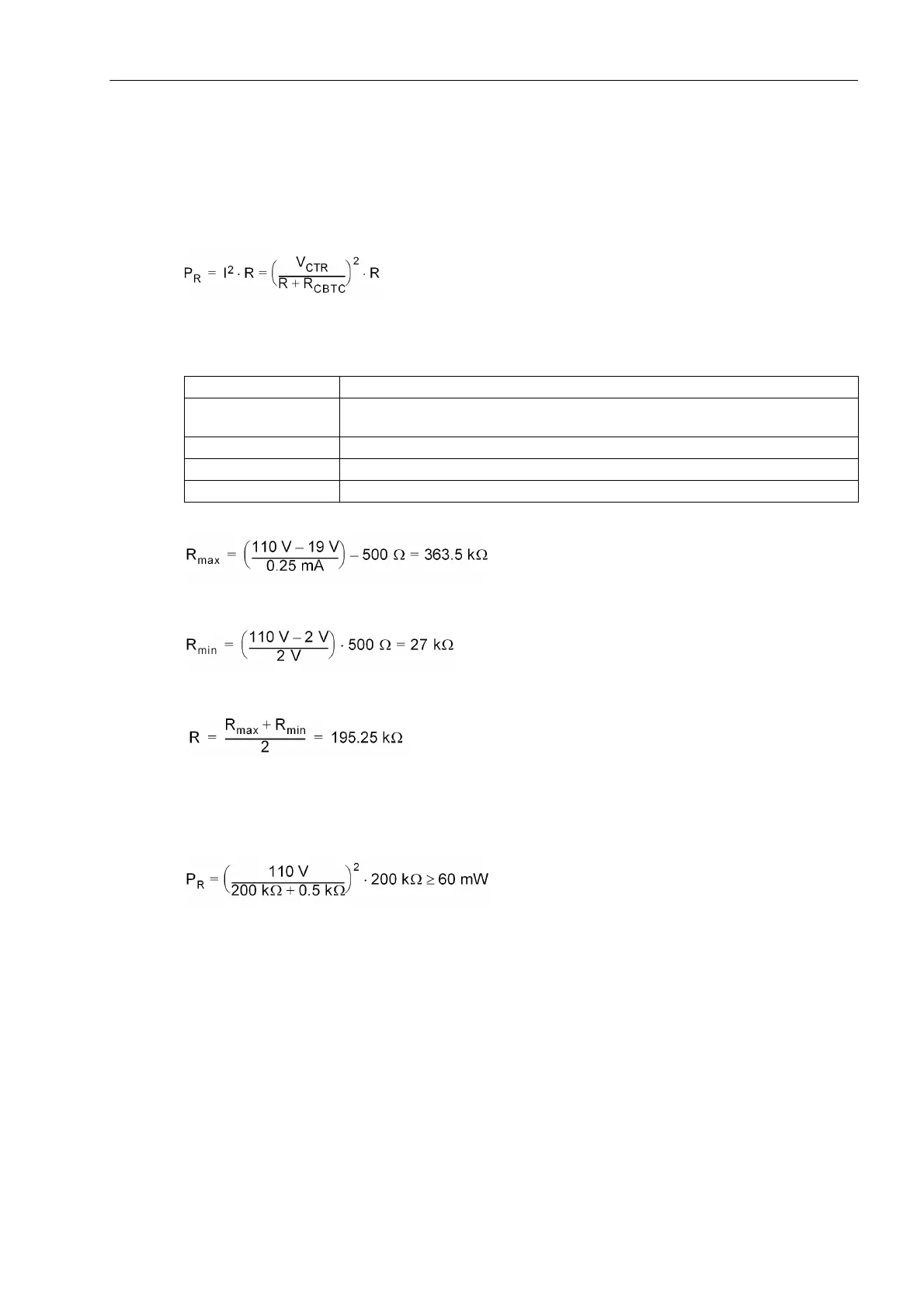

For the power consumption of the resistance:
Example
The closest standard value 200 kΩ is selected; the following applies for the power:
I
BI (HIGH)
0.25 mA (from SIPROTEC
®
4 7SK80)
V
BI min
19 V at delivery setting for nominal voltages of 24 V/ 48 V; 88 V at delivery setting
for nominal voltages of 60 V/ 110 V/ 125 V/ 220 V/ 250 V)
V
CTR
110 V (from the system / trip circuit)
R
CBTC
500 Ω (from the system / trip circuit)
V
CBTC (LOW)
2 V (from the system / trip circuit)
