2.3 Restricted Earth Fault Protection
147
7UT613/63x Manual
C53000-G1176-C160-2

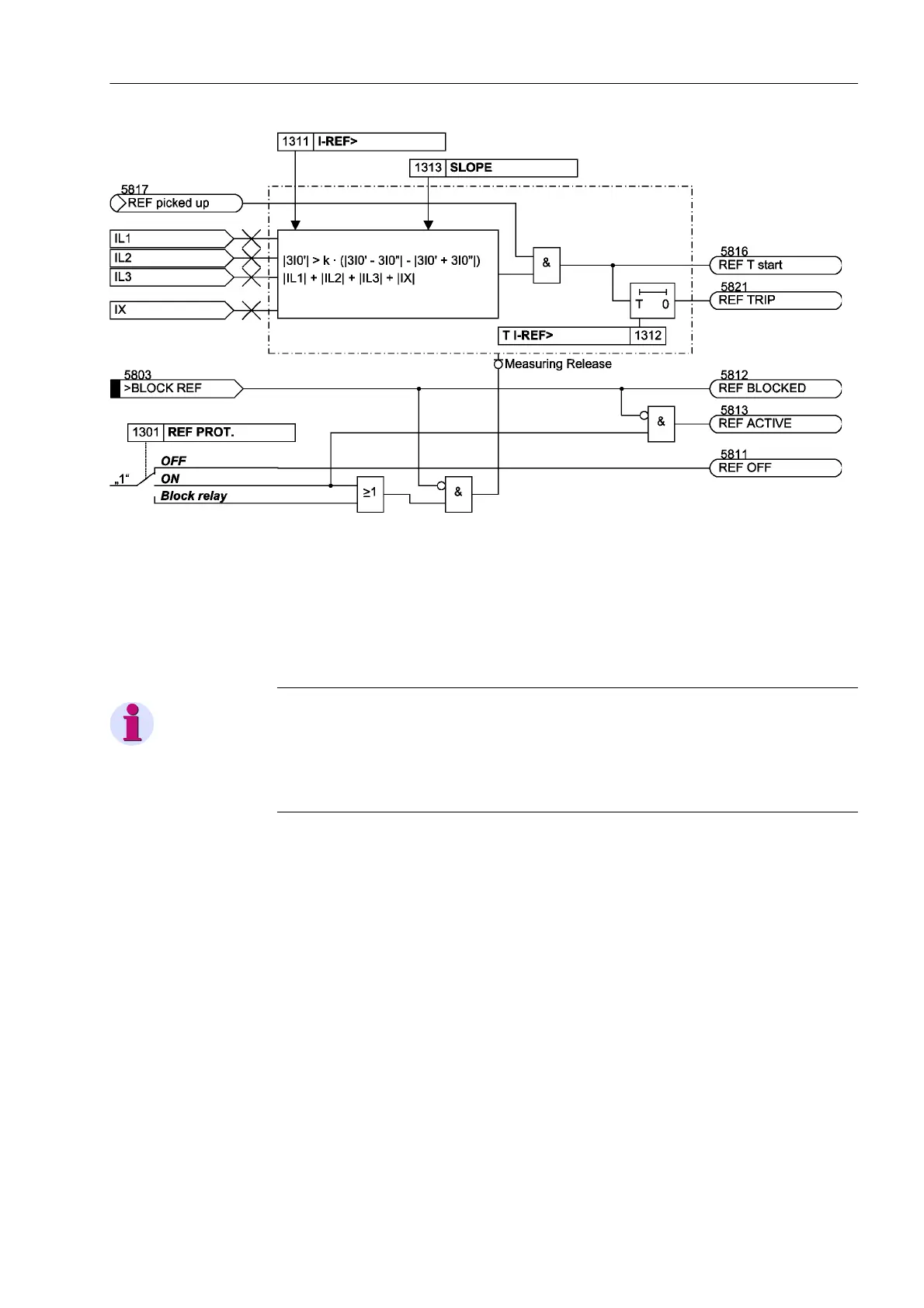

Figure 2-64 Logic diagram of the earth fault protection (simplified)
2.3.3 Setting Notes
General
Note
The first restricted earth fault protection is described in the setting instructions. The pa-
rameter addresses and message numbers of the second restricted earth fault protec-
tion are described at the end of the setting instructions under „Additional Restricted
Earth Fault Protection Functions“.
The restricted earth fault protection can only operate if this function has been set
during configuration of the functional scope (section 2.1.4) under address 113 REF
PROT. to Enabled. If the second restricted earth fault protection is used, it also needs
to be set at address 114REF PROT. 2Enabled. Furthermore, a further 1-phase
measured current input must be assigned to the same side or measuring location
where the starpoint current is to be processed (see section 2.1.4, margin heading „As-
signment of Auxiliary 1-phase Measuring Locations“). The restricted earth fault protec-
tion itself must have been assigned to this side or measuring location (see section
2.1.4, margin heading „Earth Fault Differential Protection“).
The first restricted earth fault protection can be set at address 1301 REF PROT. to
enabled (ON) or disabled (OFF); when set to Block relay, the protection function oper-
ates but no trip command is issued. Block relay).
