Siemens SIPROTEC 7UT613 series User Manual

3 Mounting and Commissioning
350
7UT613/63x Manual
C53000-G1176-C160-2
3.1.2.3 Switching Elements on Printed Circuit Boards
Processor Module
C-CPU-2
The following figure illustrates the layout of the PCB. Check the set rated voltage of
the integrated power supply, the selected control voltages of binary inputs BI1 to BI5,
the quiescent state of the life contact and the type of the integrated RS232/RS485 in-
terface using the the tables below. Before checking the integrated RS232/RS485 in-
terface, it may be necessary to remove the interface modules mounted on top of it.

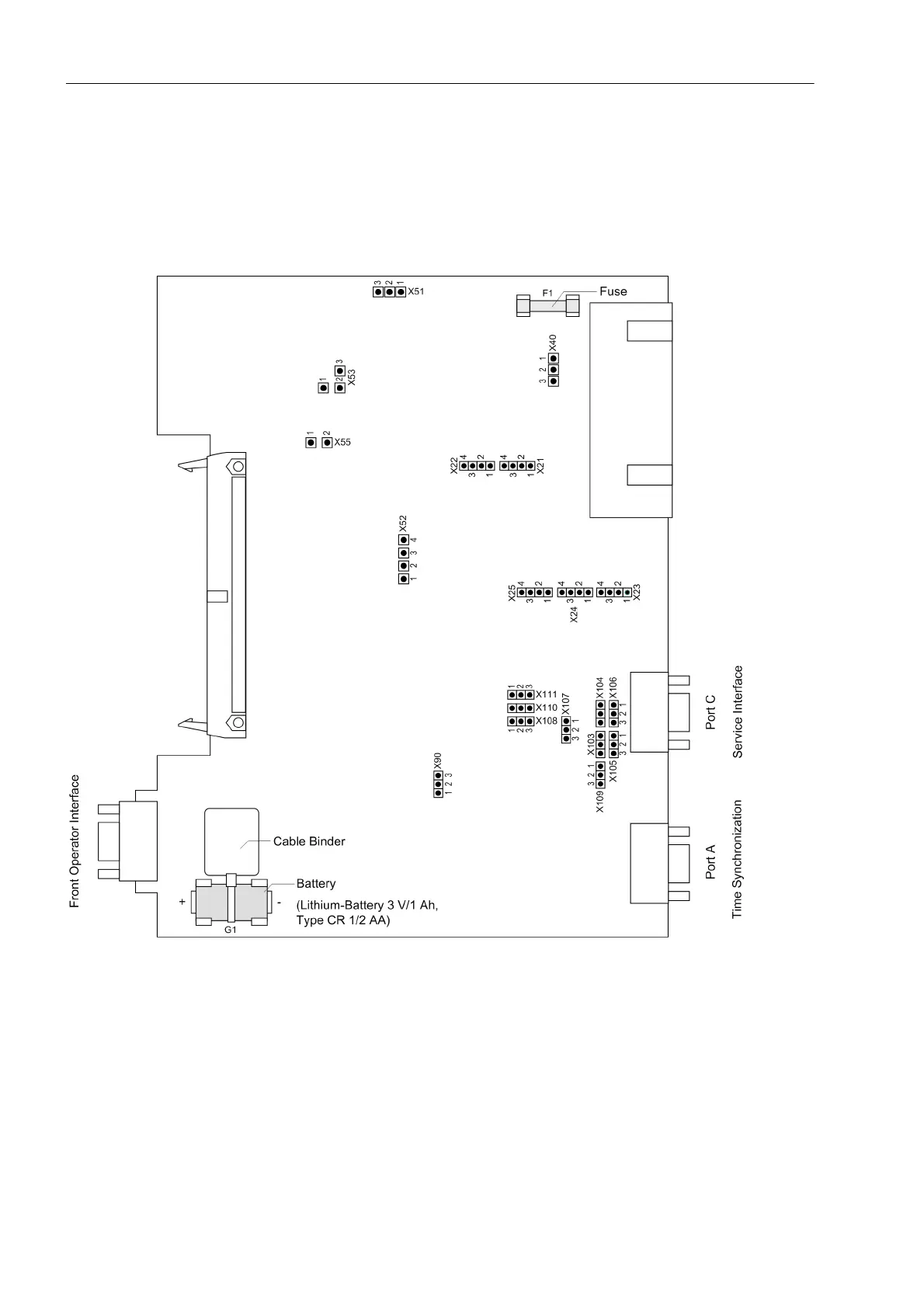

Figure 3-5 Processor board C–CPU–2 (without interface modules) with representation of the jumpers required for
checking the settings
