3 Mounting and Commissioning
356
7UT613/63x Manual
C53000-G1176-C160-2
Input/Output Board
C-I/O-2 (only
7UT613 and
7UT633)
The input/output board C-I/O-2 is available only in 7UT613 and 7UT633. Mounting lo-
cation: for 7UT613 slot 19, for 7UT633 slot 19 right side

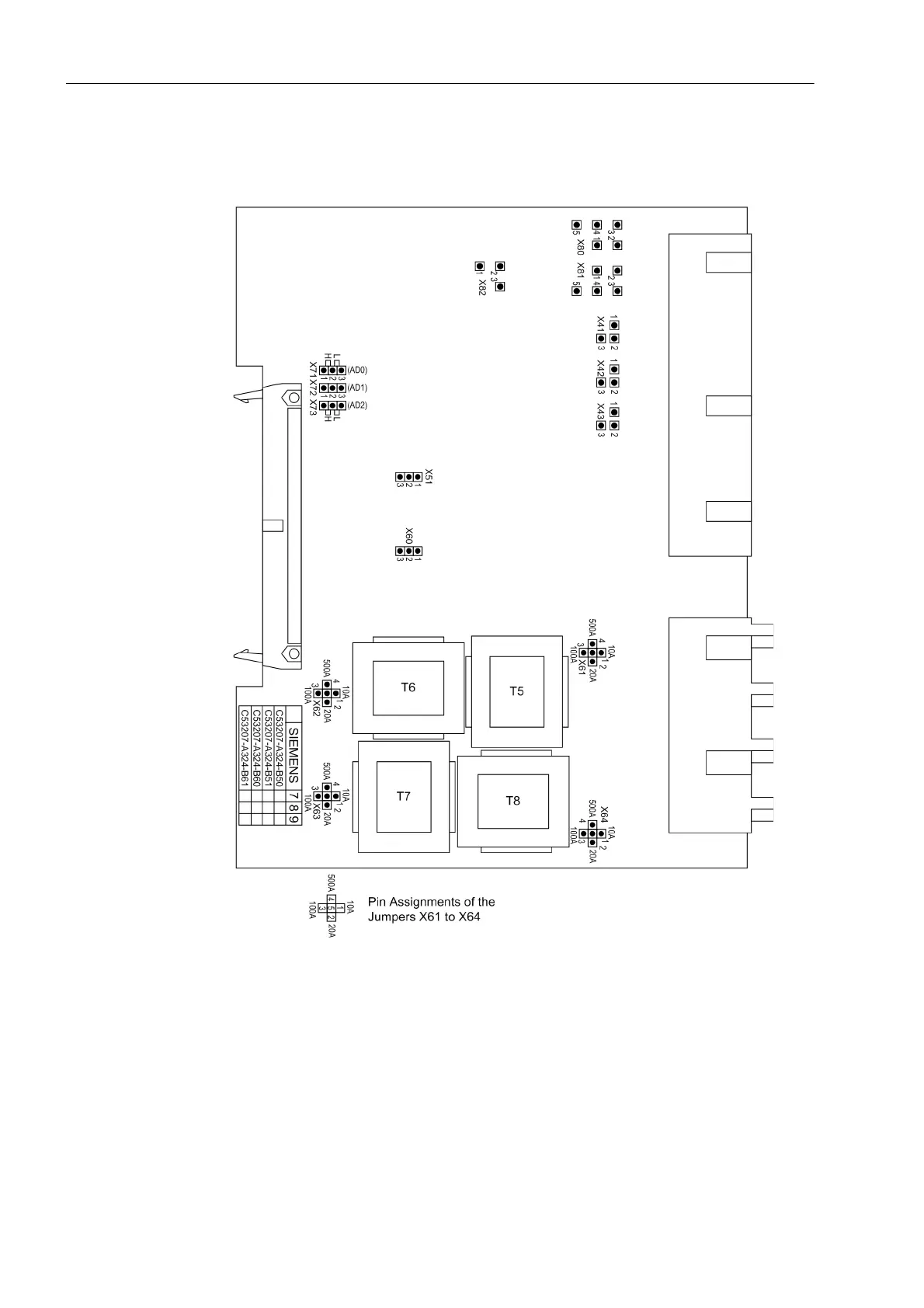

Figure 3-8 C-I/O-2 input/output board release 7UT613/63x .../EE or higher, with represen-
tation of jumper settings required for checking configuration settings
The relay contacts of the binary outputs BO6 to BO8 can be changed from NO (nor-
mally open) to NC (normally closed) operation (refer also to Appendix A.2).
