4 Technical Data
446
7UT613/63x Manual
C53000-G1176-C160-2

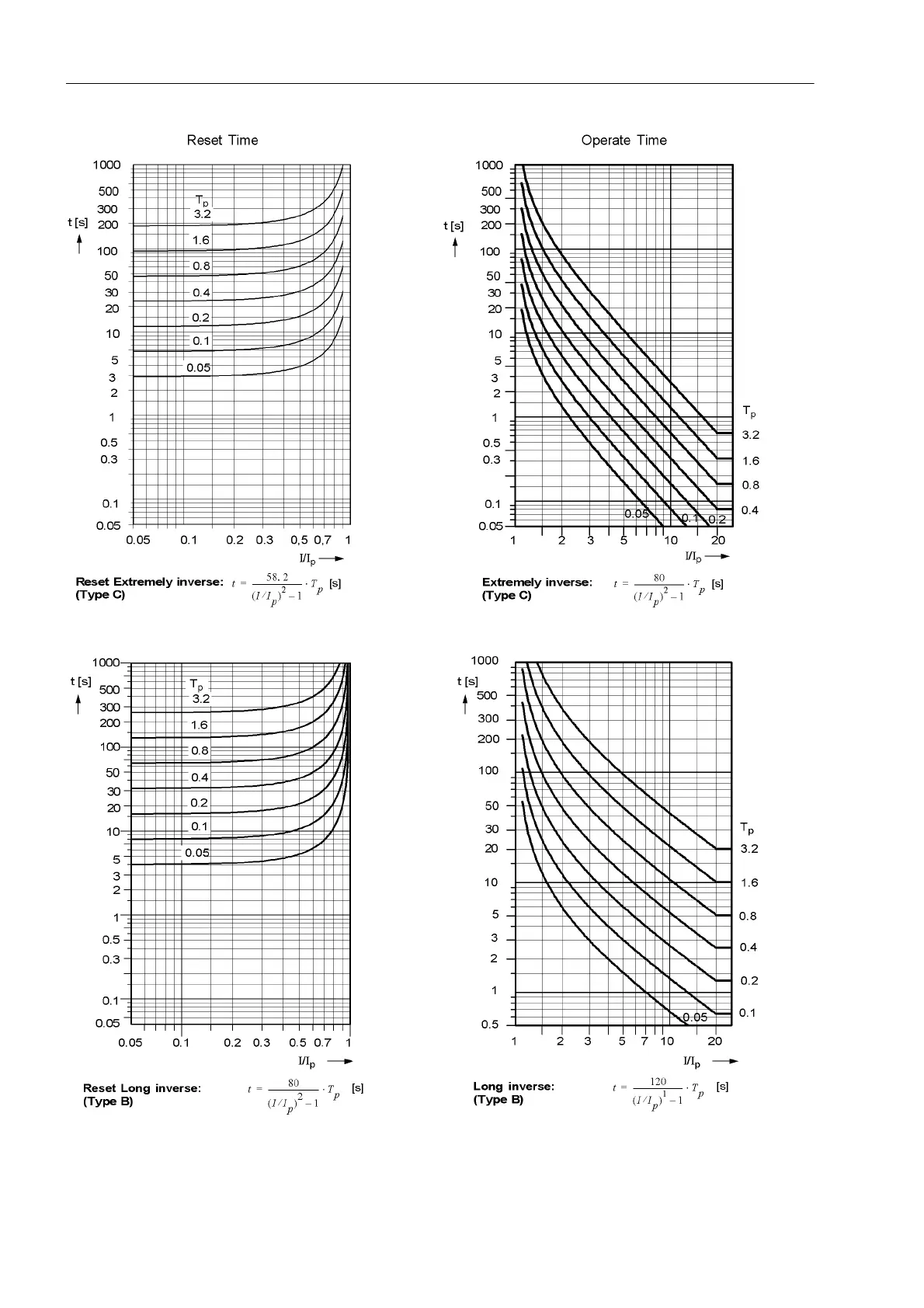

Figure 4-8 Dropout time and trip time curves of the inverse time overcurrent protection, acc. to IEC
