4 Technical Data
470
7UT613/63x Manual
C53000-G1176-C160-2

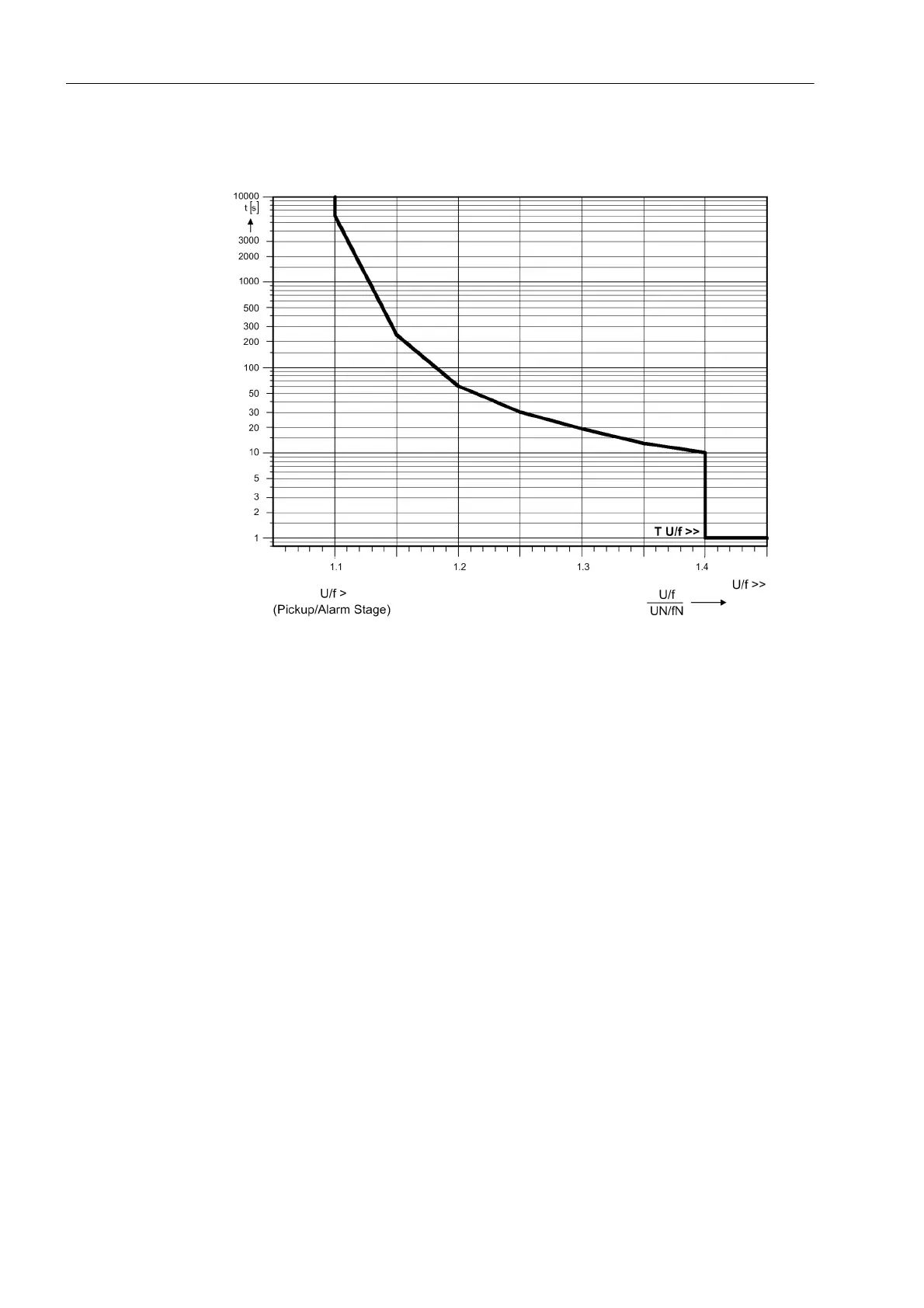

Figure 4-19 Resulting tripping characteristic from thermal replica and stepped characteristic
of the overexcitation protection (default settings)
