A.3 Connection Examples

527

7UT613/63x Manual

C53000-G1176-C160-2

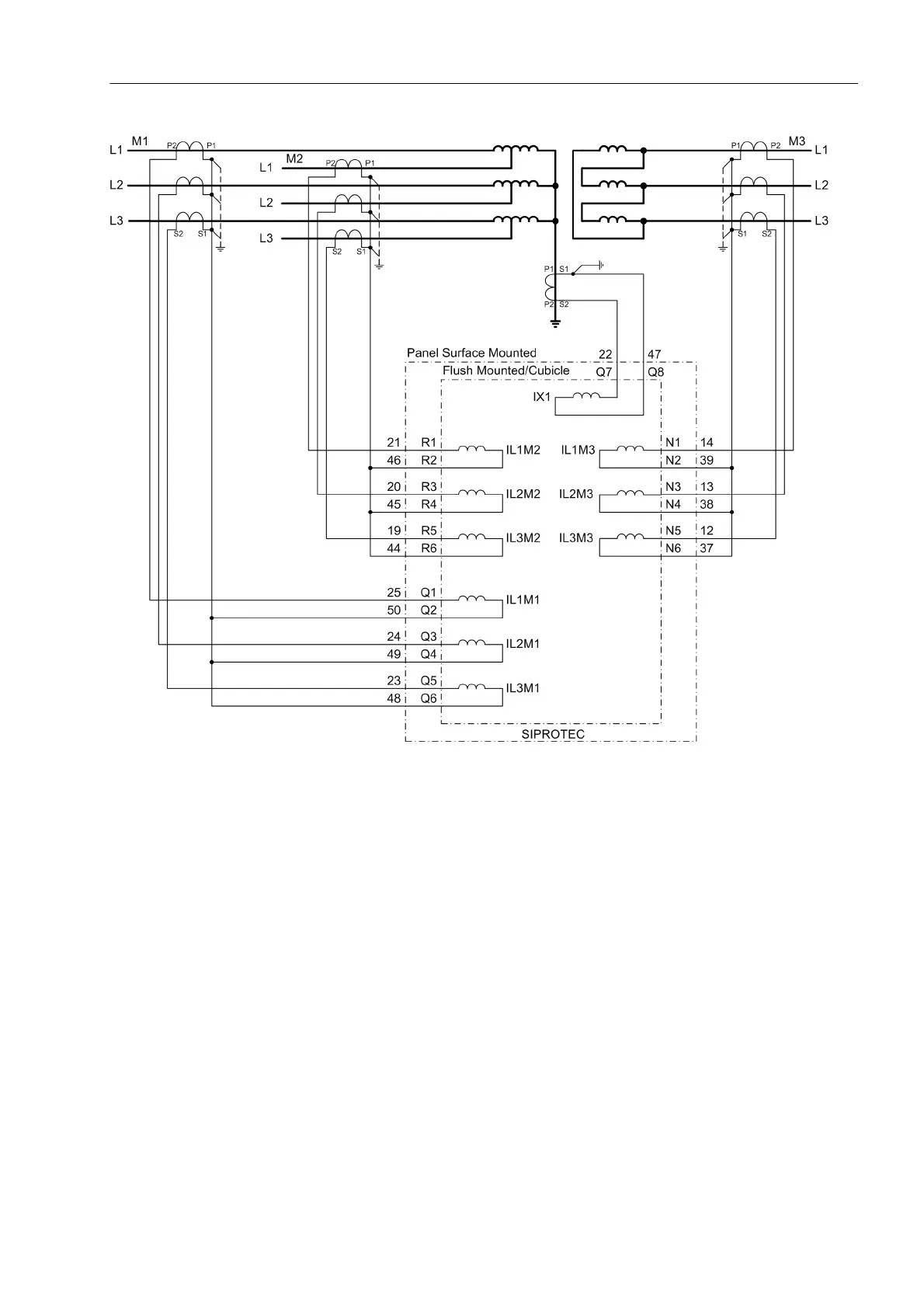

Figure A-16 Connection example 7UT613 for an earthed auto-transformer with brought-out delta winding capable of car-

rying load (tertiary winding) and current transformer between starpoint and earthing point
