Commissioning
4.3 Creating a project
Commissioning with Startdrive
Commissioning Manual, (IH3), 07/2016, 6SL3097-4AA10-0BP0
83
Specifying the encoder evaluation
Requirement
You have already specified an encoder. The unspecified encoder evaluation is displayed.
Specifying the encoder evaluation
Various Sensor Modules are available for the encoder evaluation. Different types are offered
for selection depending on the encoder.
1. Click the unspecified encoder evaluation.

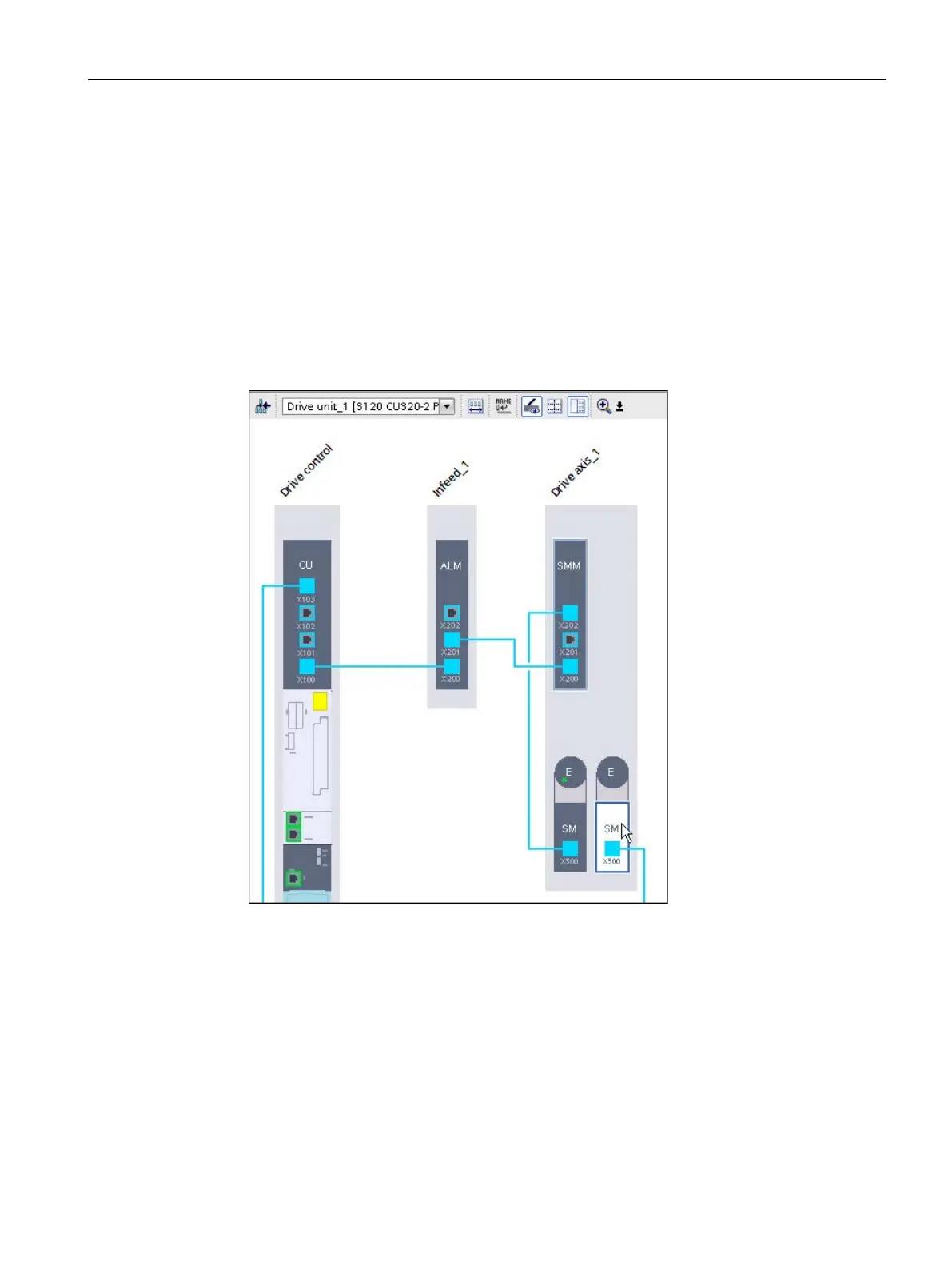

Figure 4-26 Selecting an encoder evaluation
