Diagnostics
5.3 Diagnostics via Startdrive
Commissioning with Startdrive
158 Commissioning Manual, (IH3), 07/2016, 6SL3097-4AA10-0BP0
The most important functions and settings for the trace function are explained in the
following chapters. Further, you can obtain detailed information about the trace function in
the Startdrive online help.
You can find an overview of the most important user interface elements of the trace function
in Chapter "User interface - trace function (Page 40)".
Creating or calling a trace
Traces in the form of trace configurations can be created in the project navigation. Trace
configurations that have been saved can be called and modified.
The following instructions describe how you create a trace configuration under the system
folder
"Traces" - and how you display a trace configuration that has been saved.
A drive has been configured that supports the trace function.
Proceed as follows to create a trace:
1. Double-click the "Add new trace" entry.
A new empty trace configuration is created for the drive. You must then configure the
details (see Chapter "Configuring a trace (Page 160)").

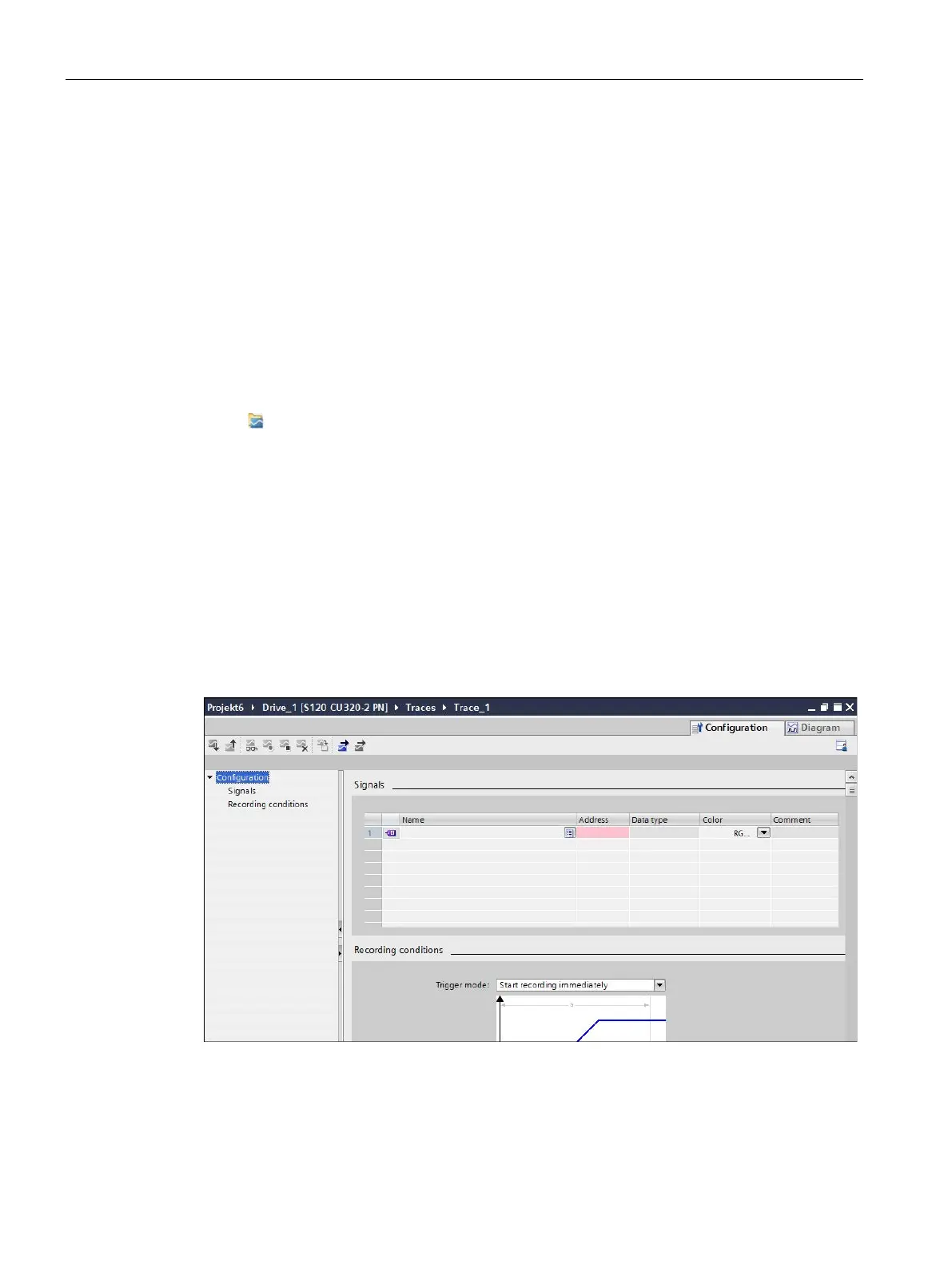

Figure 5-3 Calling a new trace
To Next Page
