Startdrive commissioning tool

2.3 User interface - parameterization

Commissioning with Startdrive

34 Commissioning Manual, (IH3), 07/2016, 6SL3097-4AA10-0BP0

2.3.3

Parameterization editor

The parameterizing editor comprises 2 tabs, under which you can parameterize the drive:

● In the function view, you parameterize the drive using a graphic user interface. The

individual screen forms are based on the function diagrams – and include the parameters

required.

● All the drive parameters are listed in the parameter view, so that the drive can be

completely parameterized there.

Structure of the parameterization editor

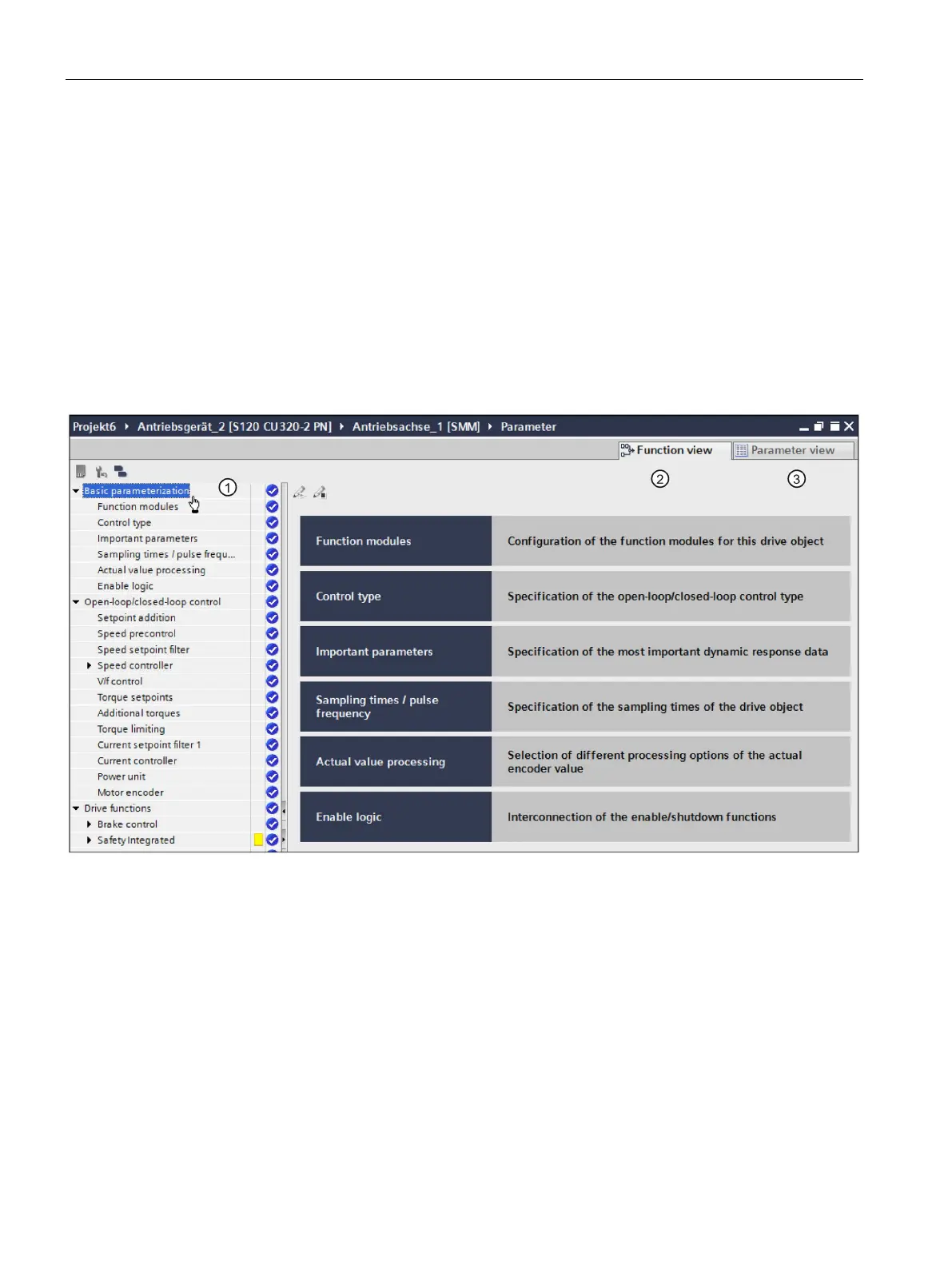

The following figure shows the structure of the parameterization editor:

①

Secondary navigation

For the selected tab, you navigate here through the individual thematically sorted topics.

②

Function view tab

Here, using a graphic user interface, you parameterize the drive. The masks are derived from the respective func-

tion diagrams.

③

Parameter view tab

Here, you parameterize the drive using the settings that you make directly at the particular parameter.

Figure 2-5 Parameterizing editor
