Configuration
6.2 Configuring the busbar run layout
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
107

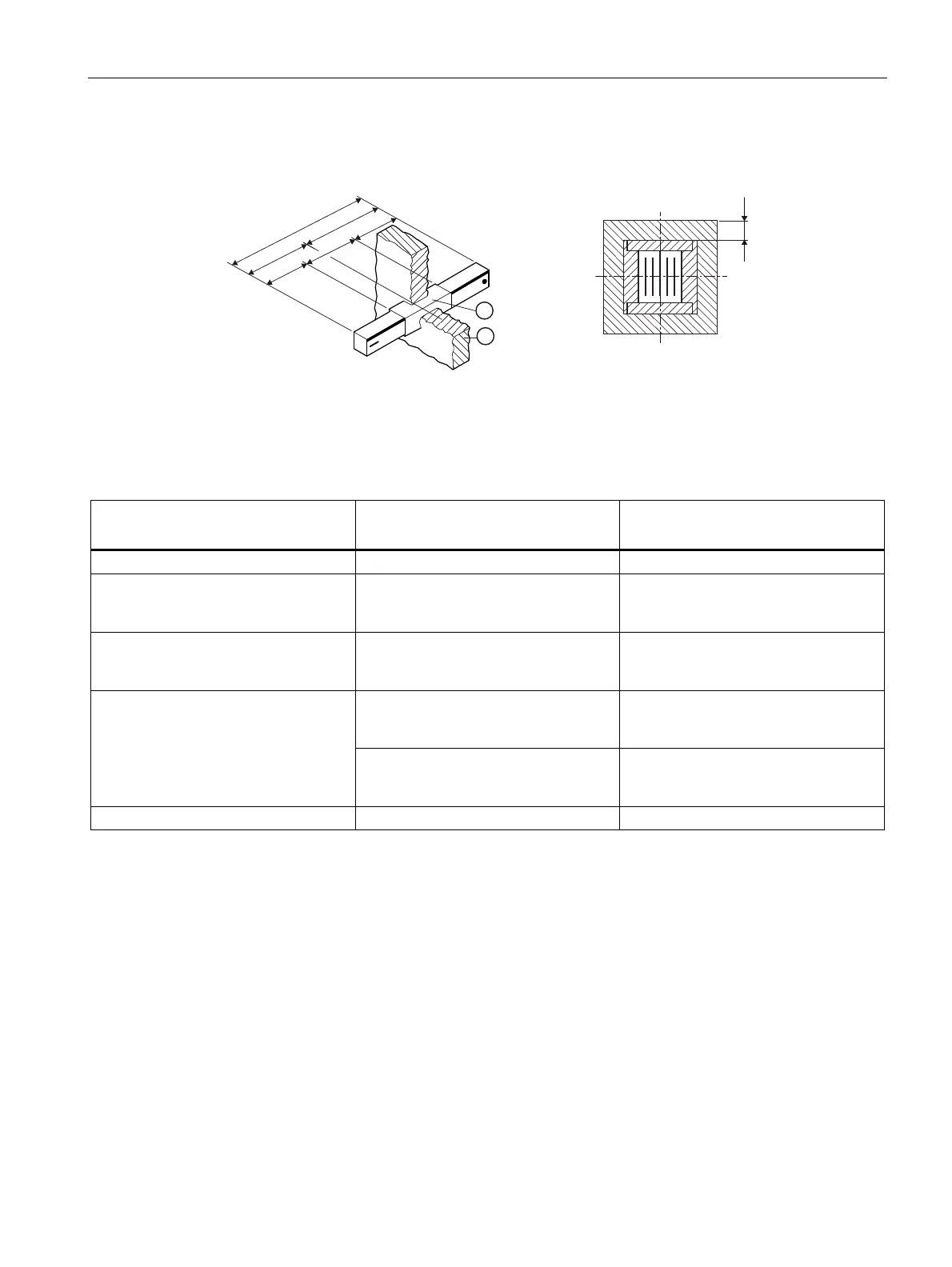

Dimensions of straight trunking units
/;
/<
/
/.
/.
:
D
①
Fire barrier a
②
Fire wall thickness to max. 0.7 m
With thicker walls: Fire barrier on request
Thickness of fire barrier plates
= 50 mm.
Name Description Length
1)
[m]
W Minimum selection length 1.04
LX Minimum distances from centre of joint
block to centre of fire barrier at the end
of the trunking unit without joint block
0.52
LY Minimum distances from centre of joint
block to centre of fire barrier at the end
of the trunking unit with joint block
0.52
Minimum distances from centre of joint
block to outer edge of fire barrier at
both ends of the trunking units
0.17 LK
Minimum distances from outer edge of
fire barrier to front edge of flange cover
of the joint block
0.01
L Fire barrier length on the trunking unit 0.7
1)
Ceiling fire barrier for the systems LXC08 and LXC09 on request
