Configuration
6.2 Configuring the busbar run layout
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
121

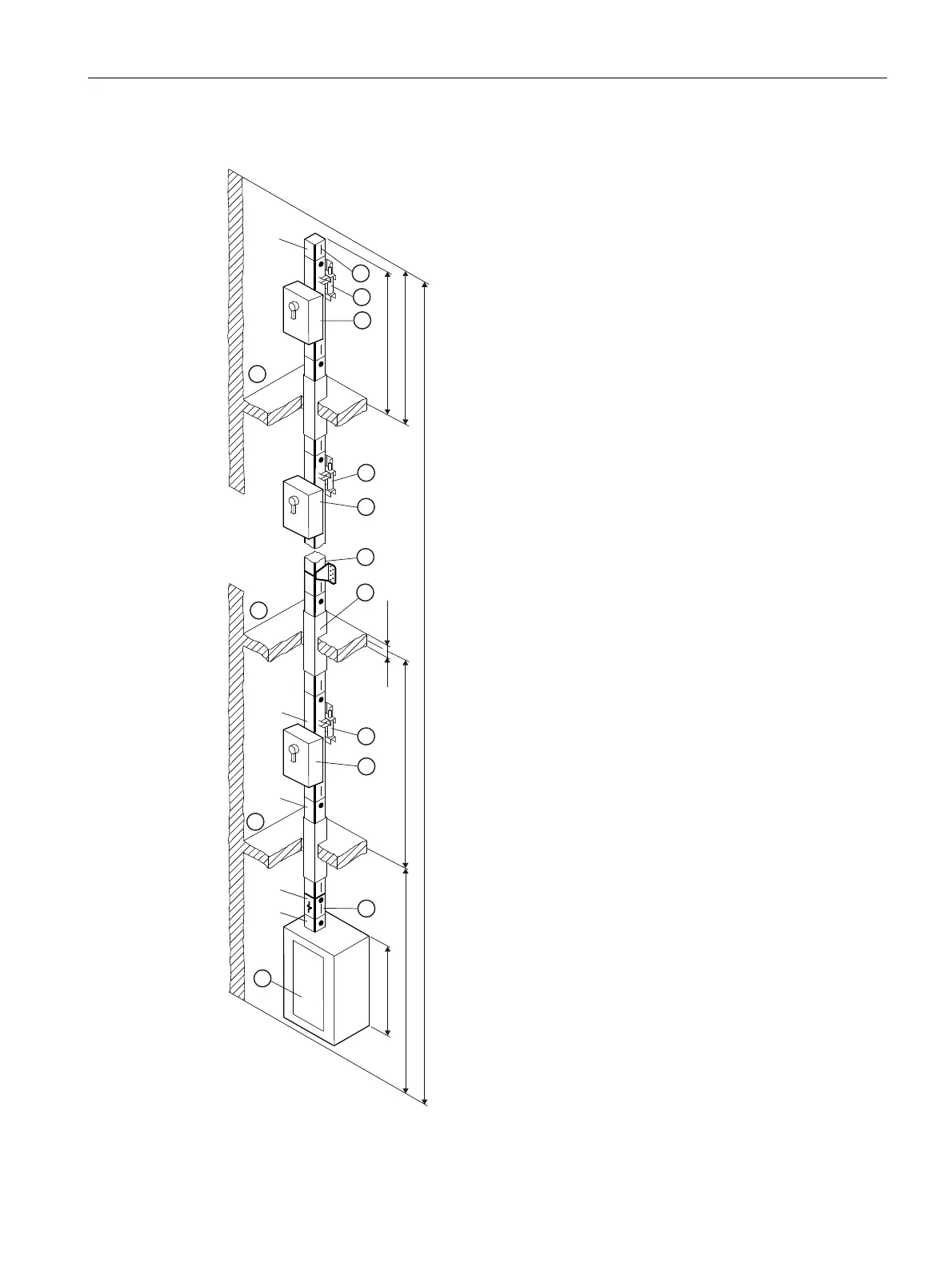

①
Non-Siemens distribution board ground floor
②
Expansion compensation
③
Vertical fixing bracket for power distribution
④
Fire barrier (positioning see hotspot text; here: fire
barrier in the centre of the fire ceiling)
⑤
Tap-off unit
⑥
End cap
⑦
Fixed point
⑧
1. floor
⑨
2. floor
⑩
11. floor
I
I
I
I
I
